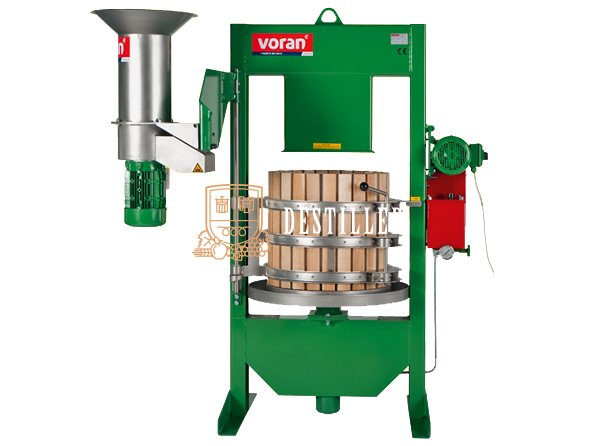

Basket press 100K with centrifugal mill RM 1,5 kW

Hersteller: Voran

Gewicht: 370 kg

Produktionsland: Austria

Herstellergarantie: 2 lata

Elektrischer Anschluss:

Nennleistung kg / h: 300 kg owoców/h

Saftausbeute:

Material: 1.4301 / AISI 304

Produktcode: 100K RM1,5

Verfügbarkeit: 14 days

Basket press with pivoting round basket, top-mounted pivoting centrifugal mill RM1,5 and hydraulic power unit. Easy and safe operation thanks to siehe vollständige Beschreibung

Bruttopreis: 9 139 €

Nettopreis: 7 430 €

Produktbeschreibung drucken

BESCHREIBUNG

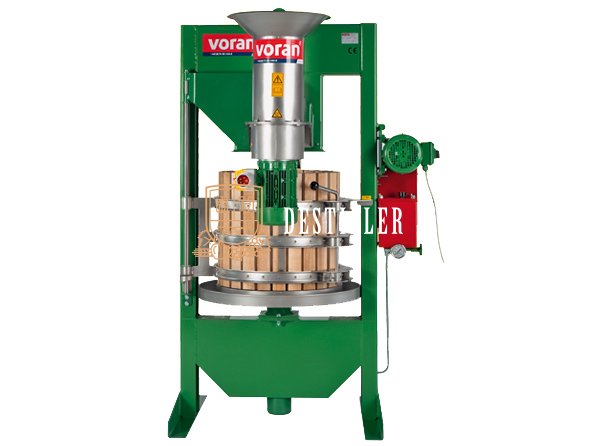

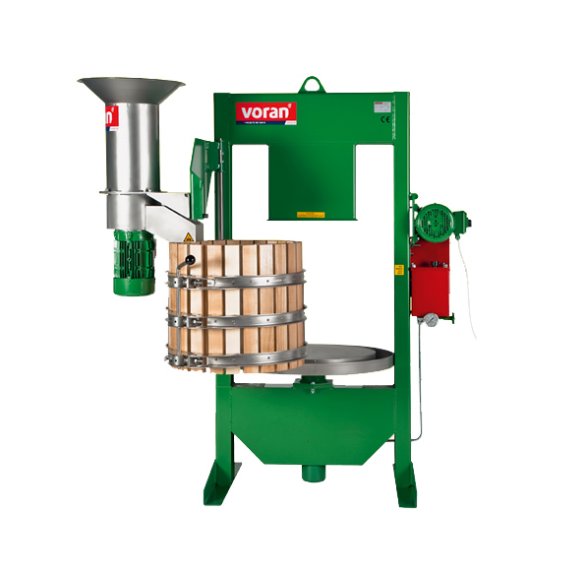

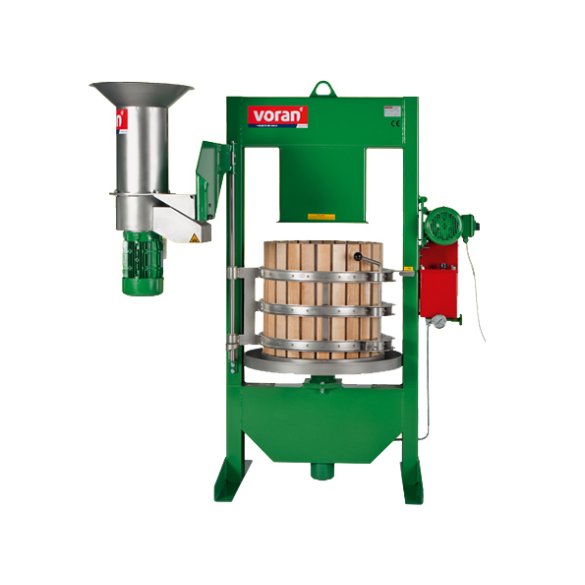

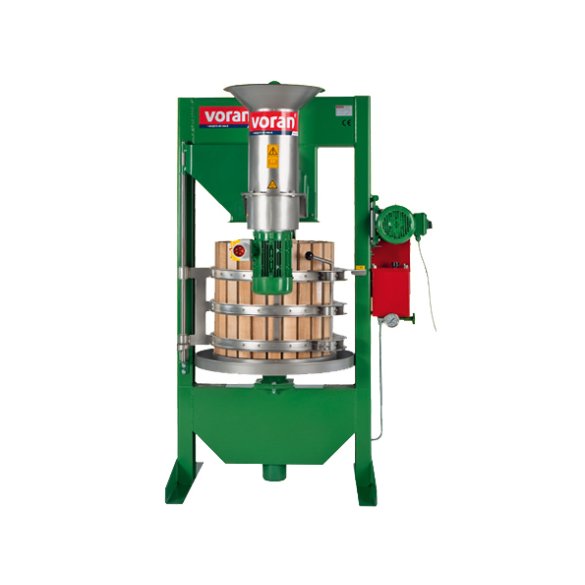

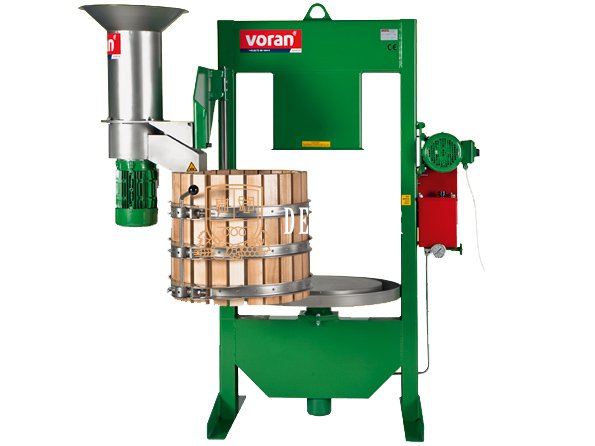

Basket press with pivoting round basket, top-mounted pivoting centrifugal mill RM1,5 and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

Processable materials
Apples, Vegetables, Pears, Carrots, Quince, Manioc, Beetroot. This represents just an example, based on different materials and a selection of fruit processed in practice.

Technical data
Height pomace ejector	640 mm
Height juice outlet	480 mm
Connection for juice outlet	ø 30 mm
Juice yield	75 %
Press pressure	380 bar
Press force	24,2 tons
Material	Juice basin 1.4301 / AISI 304
Weight	342 kg
Discharge height	1 155 mm
Height	1 900 mm
Width	800 mm
Length	1 180 mm
Electrical protection	16 A
Connected load	400V 50Hz (dreiphasig)
Motor rating	1,5 kW
Nominal rating kg/h	300 kg/h

Video

Dateien zum Herunterladen

60K_100K_-_Basket_presses
