BESCHREIBUNG
Compact chiller, ice water generator equipped with a water tank and centrifugal pump. Open type chiller. The device is additionally equipped with an electric heater - the ability to heat the tank. At outlet temperatures below + 10 ° C, the use of propylene glycol is required, approx. 30%). The price of the device includes a set to protect against overflow.

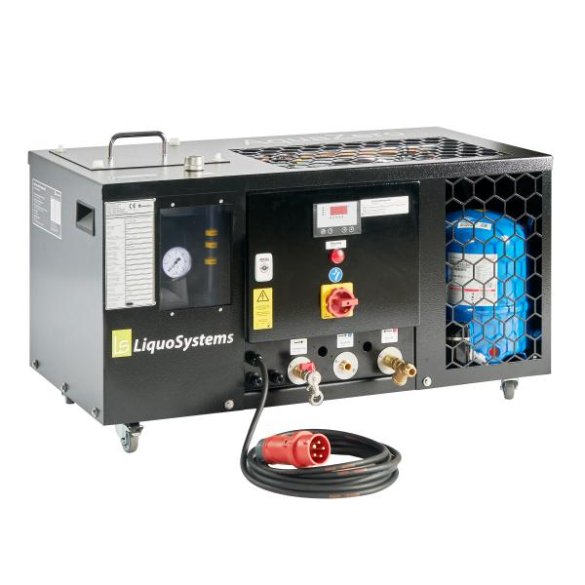

Compact AquaZero 3.0 kW chiller:
- Cooling water temperature range from: -5°C* to +15°C
- Ambient temperature range from: +5°C to +42°C
- Cooling capacity: 3.0 kW
- Refrigerant: R134a
- In accordance with F-Gas Regulation (EU) No. 517/2014, up to 13.5 kW, NO leak test required**
- Power supply: 230 V, 1 phase, 50 Hz
- Connection cable: 4 meters with plug
- Inlet/outlet water connection: 1/2 inch external thread
- Water tank capacity: 28 liters
- Included Bypass valve, pressure gauge, strainer, water shortage float switch
- Dimensions: L 1000 x H 470 x D 520 mm
- Weight: 150 kg without water and additional options
ADVANTAGES:
- 4 meter connection cable with plug
- Strainer installed in the water supply
- Bypass with pressure gauge installed in the device
- Float switch installed for low water level alarm
- MicroGroove condenser (microchannel filter, sensitive to contamination)
- A series for min. outlet temperature -5 ° C
