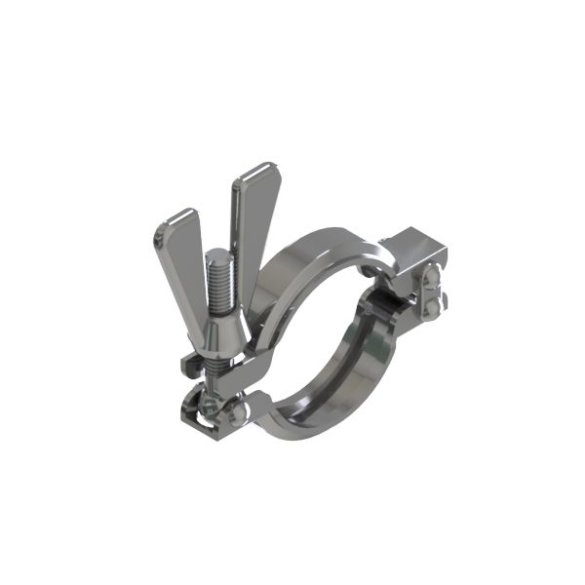

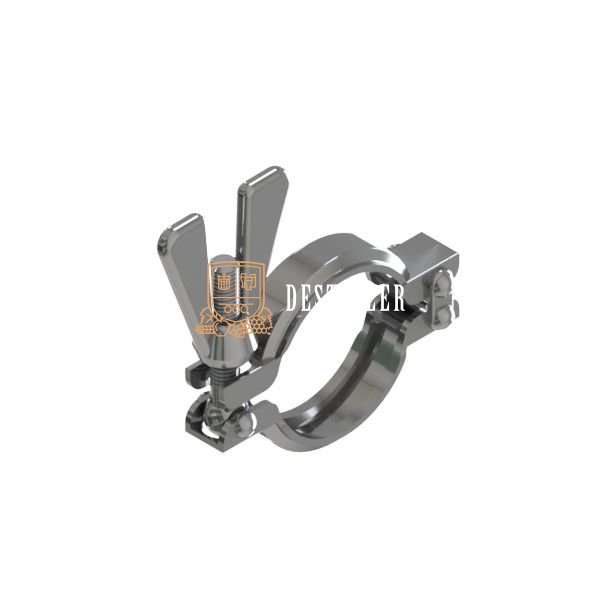

Clamp light, DN25-40

Hersteller: MS

Produktcode: 187011122

Clamp ring, Tri- Clamp, DN25-40/1-1,5" , AISI 304 MAT, 21,3-33,7 TC 50,5

A: 53,0
B: 84,5
C: siehe vollständige Beschreibung

Produktbeschreibung drucken

Gesamte Beschreibung

BESCHREIBUNG

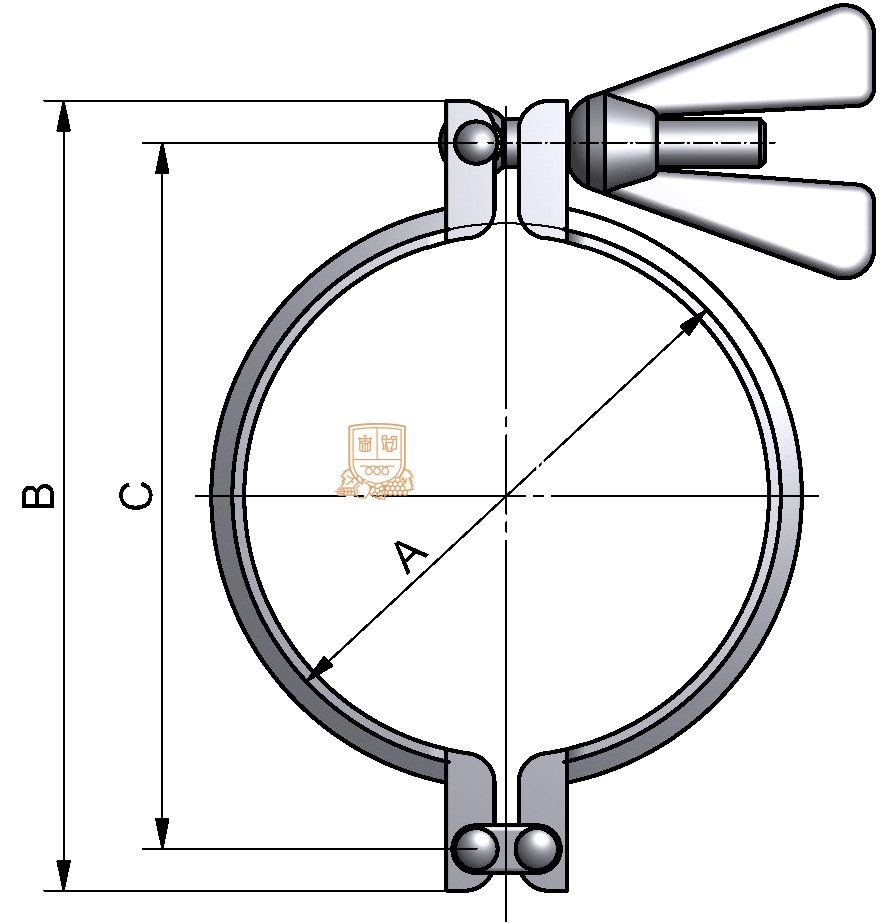

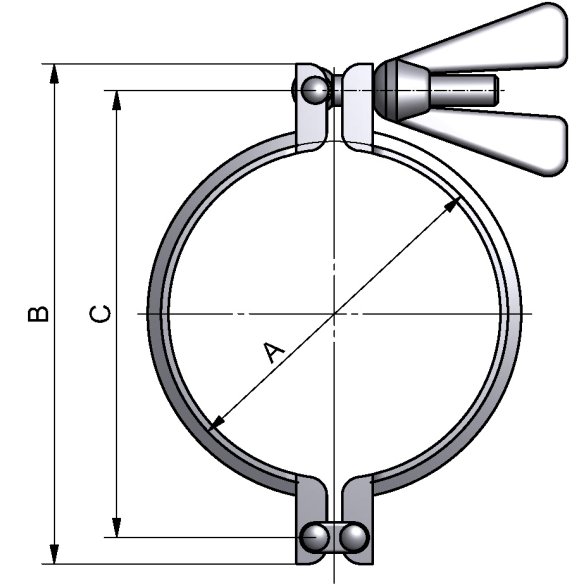

Clamp ring, Tri- Clamp, DN25-40/1-1,5" , AISI 304 MAT, 21,3-33,7 TC 50,5

A: 53,0
B: 84,5
C: 69,0
D: 50,5
E: 7
production group: clamp ring (TC)
dimension range: DIN, Inch, ISO
version: clamp ring (TC) light wing nut
size: 25, 32, 40, 1", 1,25", 1,5", 21,3, 26,9, 33,7, flange 50,5
material: 304/304L - 1.4301/1.4307
surface: mat
clamp light type
D: for diameter of flange
E: max. pressure
