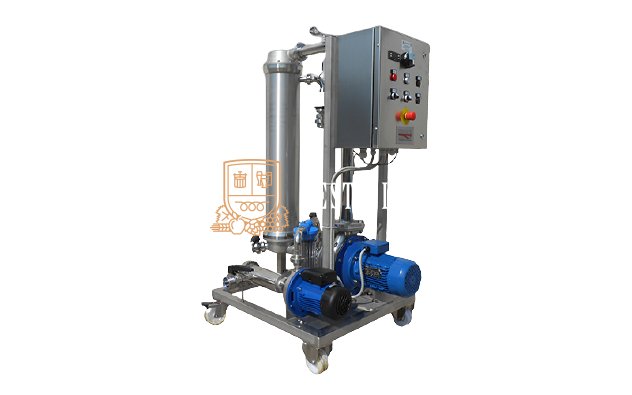

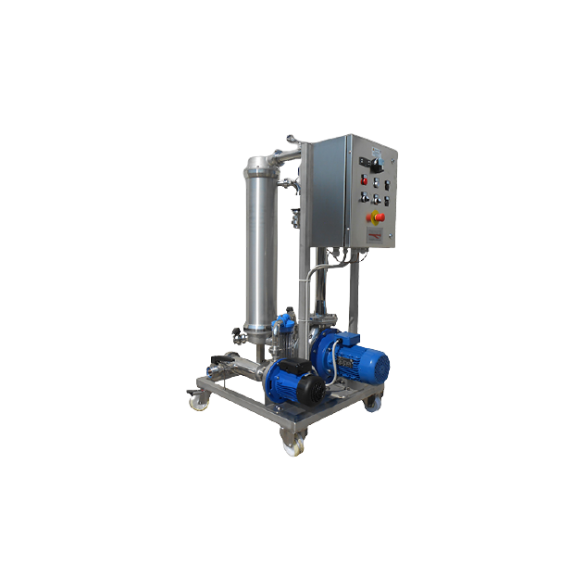

Cross Flow Filter B1
Hersteller: bared
Crossflow filtration makes a perfectly clear product without any clarifying agent and/or filter aid requirement. When a clarifying treatment
siehe vollständige Beschreibung
BESCHREIBUNG
Crossflow filtration makes a perfectly clear product without any clarifying agent and/or filter aid requirement. When a clarifying treatment with bentonite or other clarifying agents is required, it is necessary to wait for the decantation and transfer the clear product in another tank before starting filtration. Filtration rates and cycles of filtration are depending of solid’s content and kind of products such as colloids, bacteria, yeasts.
Technical data:
Model B 1
Surface 15.3 m²
Electricity 400v / 3-phase / 50Hz
Adsorbed power 1.2 kW
Plant max working pressure 6.0 Bar
Rinsing/Cleaning water requirements Fresh municipal water
Chemicals for cleaning Sodium hydroxide NaOH
Wine temperature increase +0.5°C max.
Average filtration cycle 20 h
Average yield of filtrate 500 - 800 L/h
Performance per day 6.000 – 15.000 L
Dimensions (LxWxH) ca. 800x900x1600 mm
Weight ca. 170 Kg
Projekte

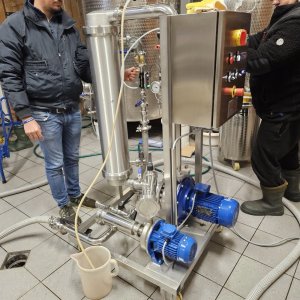

Lieferung und Inbetriebnahme des Cross Flow B1 Filters, Bared, Winnica Korol, November 2023
