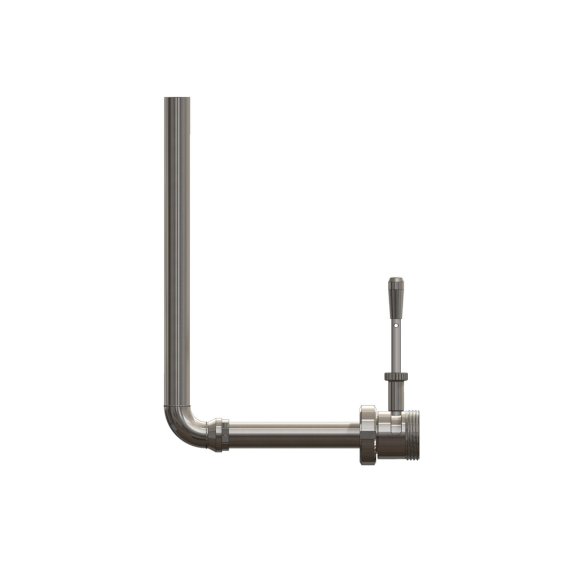

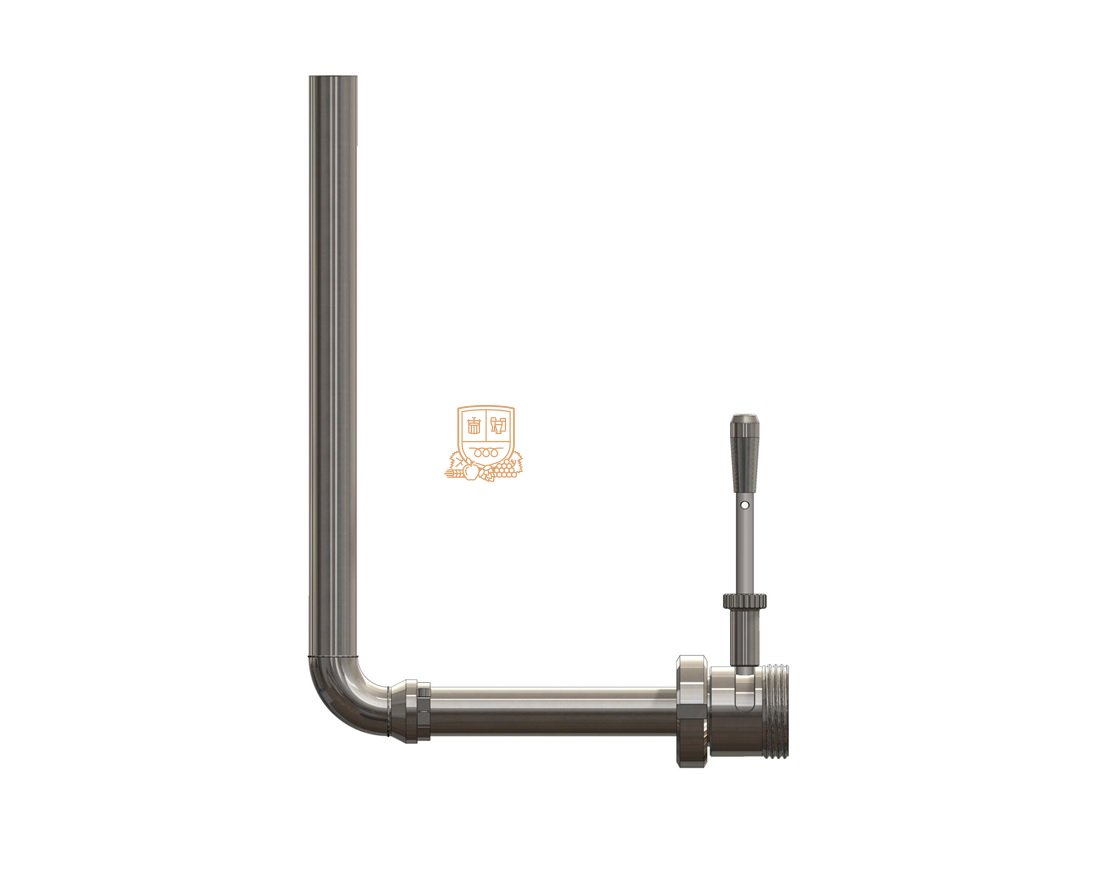

Decanter demontable bend, DIN DN40, DN50

Hersteller: EVROStroj

Produktcode: ITEM-890

Professional stainless steel decanter valve for removing wine from the sediment. The tube can be positioned to collect the wine from above the siehe vollständige Beschreibung

Produktbeschreibung drucken

Gesamte Beschreibung

BESCHREIBUNG

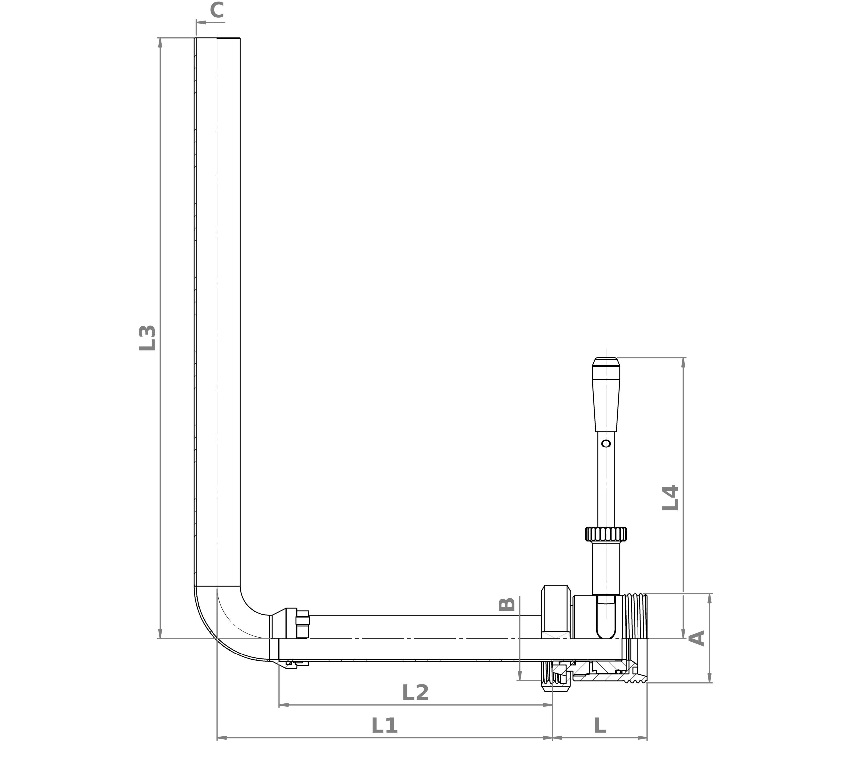

Professional stainless steel decanter valve for removing wine from the sediment. The tube can be positioned to collect the wine from above the sediment. The valve can be connected to any source that is equipped with a special ball valve or a DIN 11851 output of a typical standard, according to the table below:

SIZE	A	B	C	L	L1	L2	L3	L4	CODE
32	DIN DN40	DIN DN40	∅30˛7	69	244	200	438	205	8903240
40	DIN DN50	DIN DN50	∅37	70	260	207˛5	445	205	8904050

Evro_890
