Entsteinungsmaschine EP 500

Hersteller: Voran

Gewicht: 115 kg

Produktionsland: Austria

Herstellergarantie: 1 rok

Elektrischer Anschluss:

Nennleistung kg / h: 500 kg/h

Produktcode: EP 500

Verfügbarkeit: 14 days

De-stoning / straining system with changeable screens and adjustable rotor for de-stoning and straining fruit and berries. The stones are ejected siehe vollständige Beschreibung

Bruttopreis: 6 630 €

Nettopreis: 5 390 €

Dieser Artikel ist in unserem Online-Shop nicht verfügbar. Um ein unverbindliches Angebot zu erhalten, empfehlen wir Ihnen, über den Button „Fragen Sie nacht dem produkt“ eine Anfrage zu stellen. Bei weiteren Fragen nehmen wir mit Ihnen Kontakt auf, um die Einzelheiten zu klären.

Produktbeschreibung drucken

BESCHREIBUNG

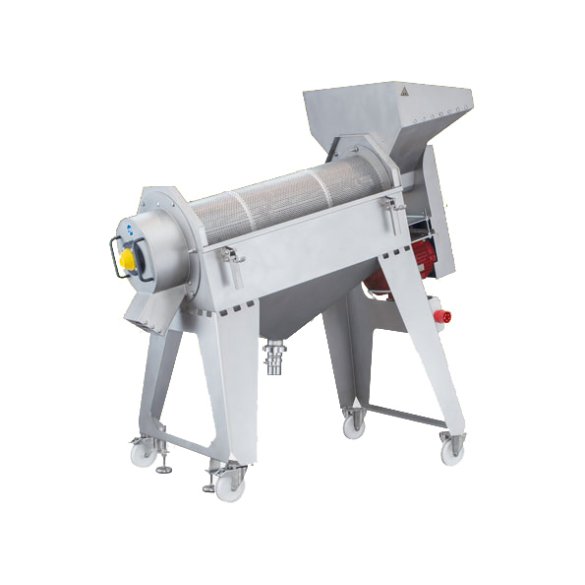

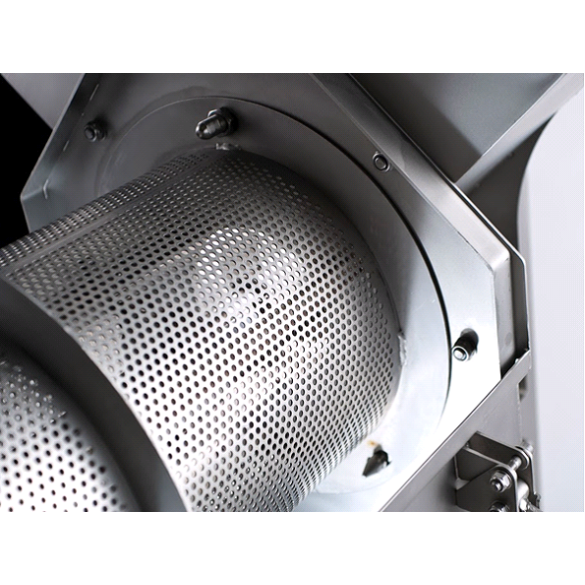

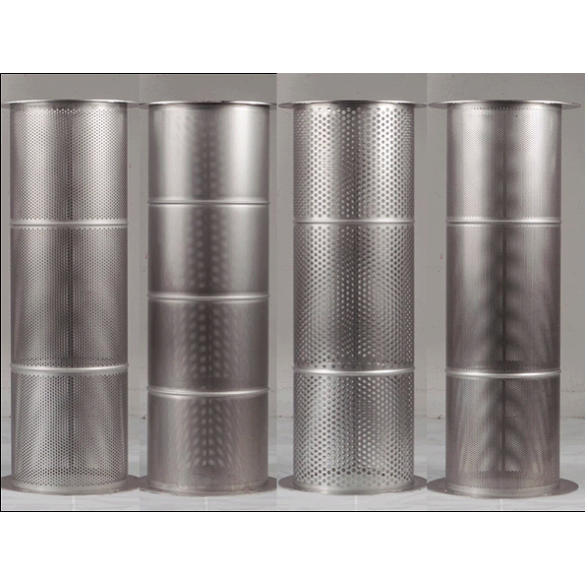

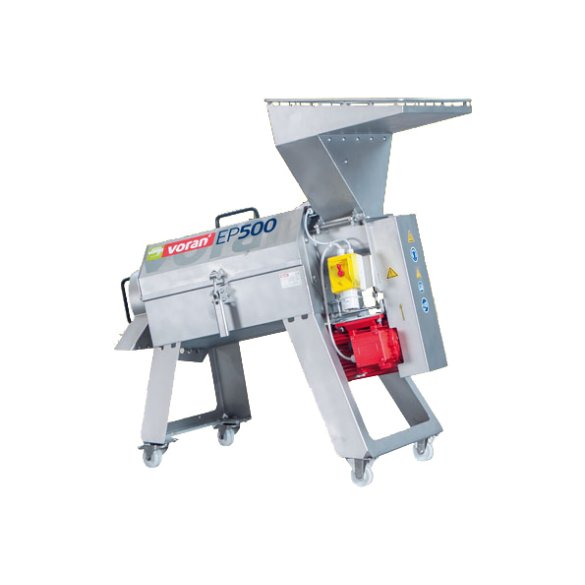

De-stoning / straining system with changeable screens and adjustable rotor for de-stoning and straining fruit and berries. The stones are ejected separately from the mash.

Processable materials
Vegetables, Apples, Apricots, Pears, Blackberries, Strawberries, Dates, Blueberries, Carrots, Cherries, Manioc, Peaches, Plums (damsons), Quince, Beetroot, Sallow thorn, Tomatoes. This represents just an example, based on different materials and a selection of fruit processed in practice.

Technical data
Height stone outlet	380 mm
Height mash outlet	340 mm
Connection for mash pumps	DN 65 AG
Material	1.4301 / AISI 304
Weight	110 kg
Discharge height	1 250 mm
Height	1 250 mm
Width	640 mm
Length	1 190 mm
Electrical protection	16 A
Connected load	400V 50Hz (dreiphasig)
Motor rating	3,0 (4,0) kW (PS)
Nominal rating kg/h	500 kg/h

Video

Dateien zum Herunterladen

EP500_EP1000_de-stoning_units

Wir empfehlen dieses Produkt

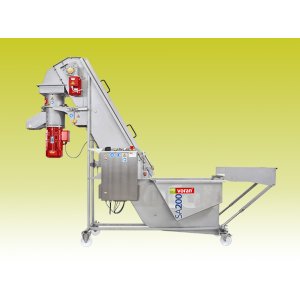

Washing system for fruits and vegetables, consisting of sorting grid, washing vessel and chain conveyor. Washing process takes place in the washing area with fresh water shower on the conveyor
