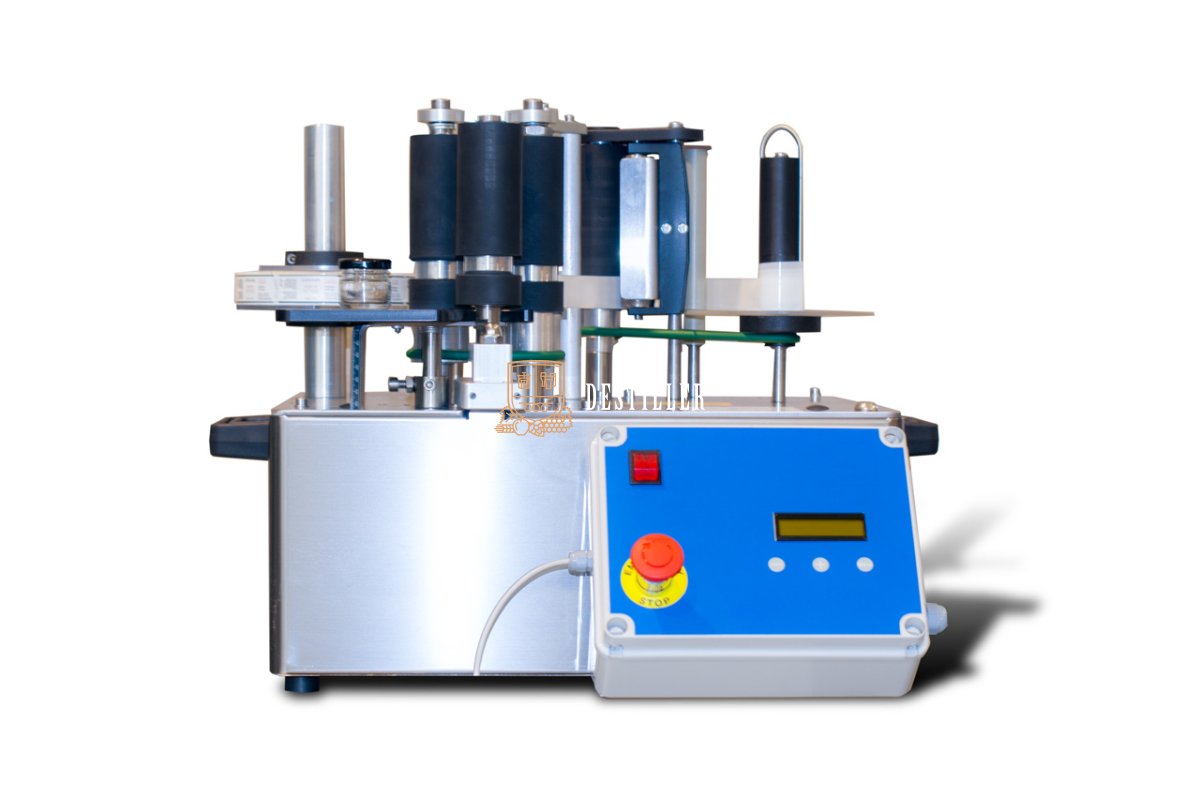

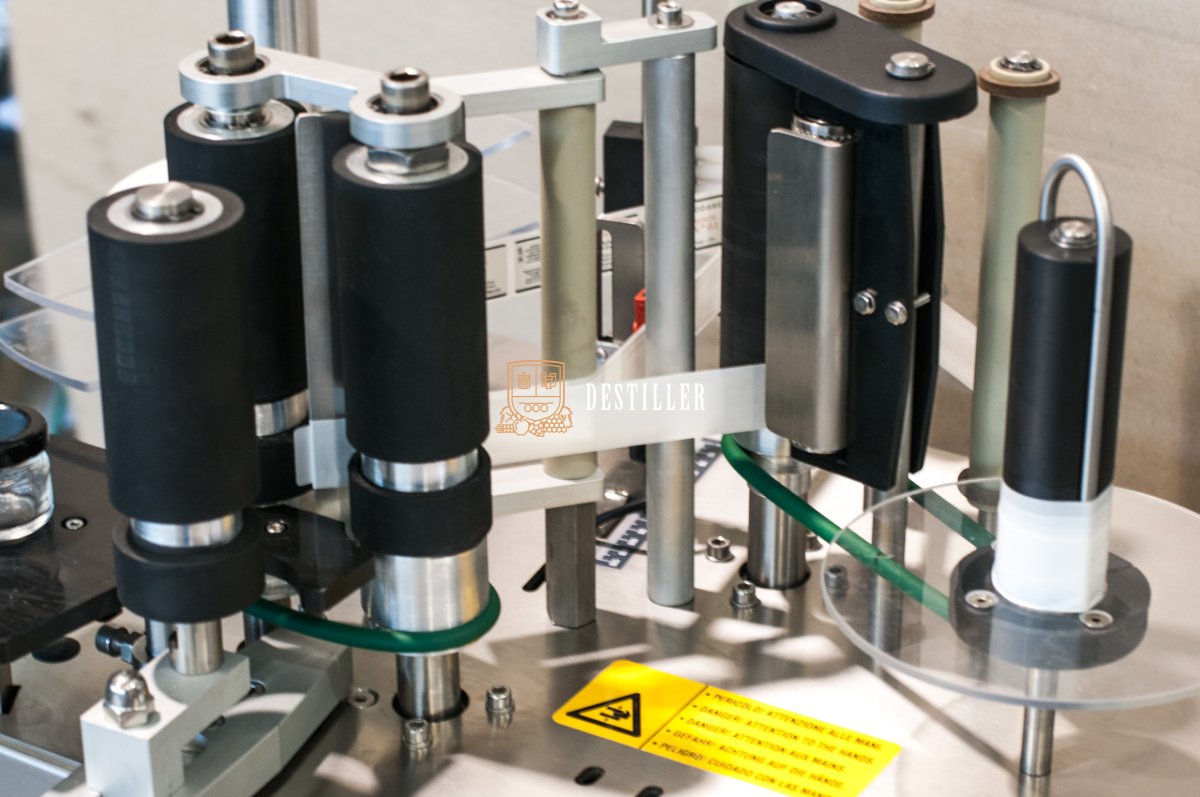

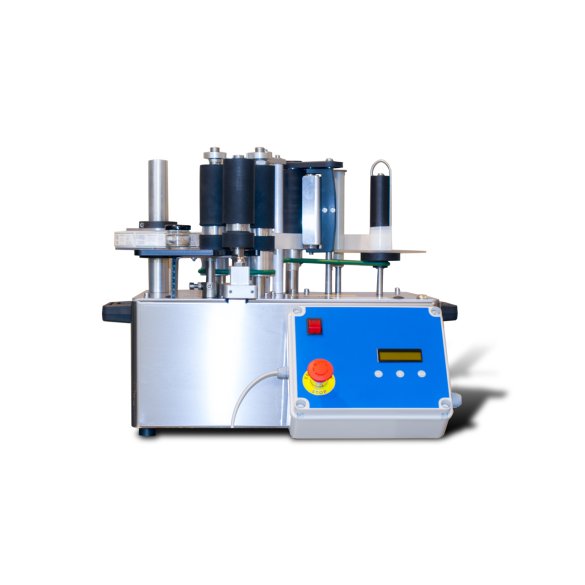

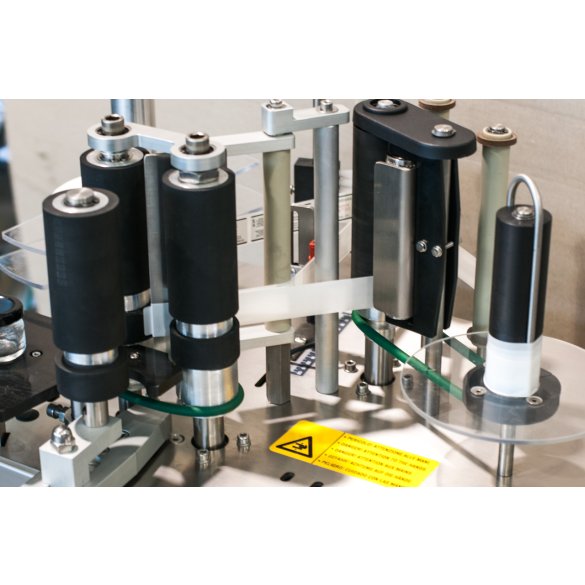

FX-10H is a semi-automatic table-top labelling machine, able to stick front and back label during the same cycle. The product is standing on a small platform in between the three rollers. This machine allows to label round glass bottles but also glass jars. With appropriate options it is possible to read reference marks, to stick a label referred to a special lid and even installing a marking system. The machine has an essential stainless steel structure and a ribbed roller for the silicone paper with quick releasing. It is in conformity with EC safety standards and the electronic board with microprocessor enables to use different labelling variants.

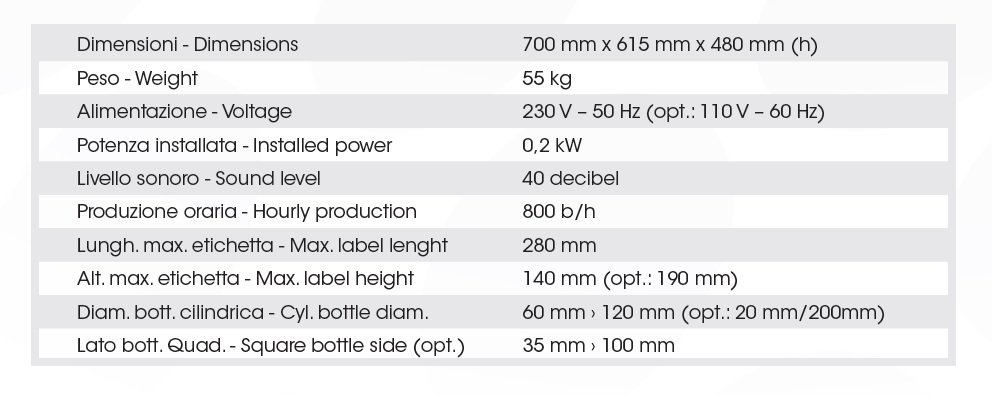

| TECHNICAL FEATURES | |
|---|---|
| Dimensions | 700mm x 615mm x 480mm |
| Weight | 55kg |
| Voltage | 230V - 50Hz (opt. 110V - 60Hz) |
| Installed Power | 0,2 kW |
| Sound Level | 40 decibel |
| Hour production | 700 b/h |
| Max. label height | 140mm (opt. 190mm) |
| Max. label lenght | 280mm (opt. 340mm) |
| Round bottle diametre | 50-120mm (opt. 17mm - 200mm) |
