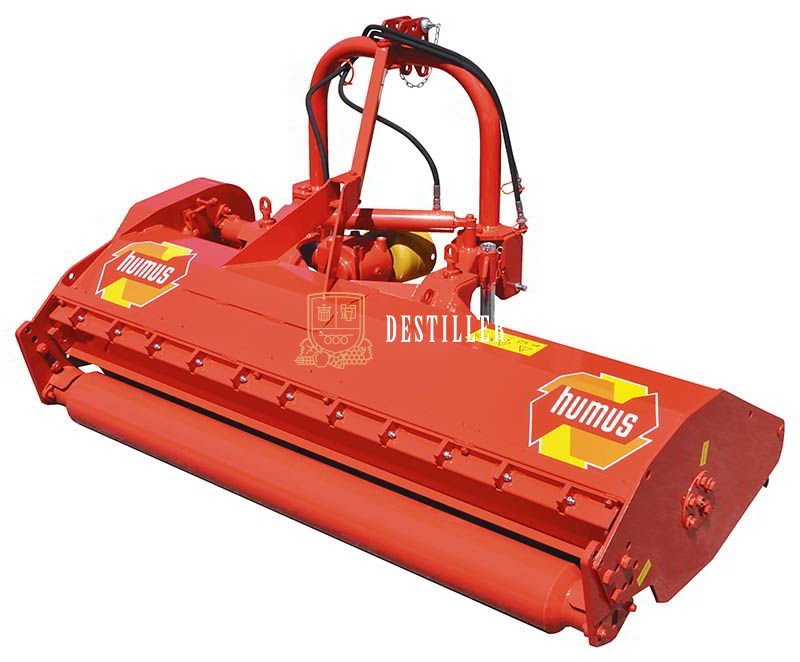

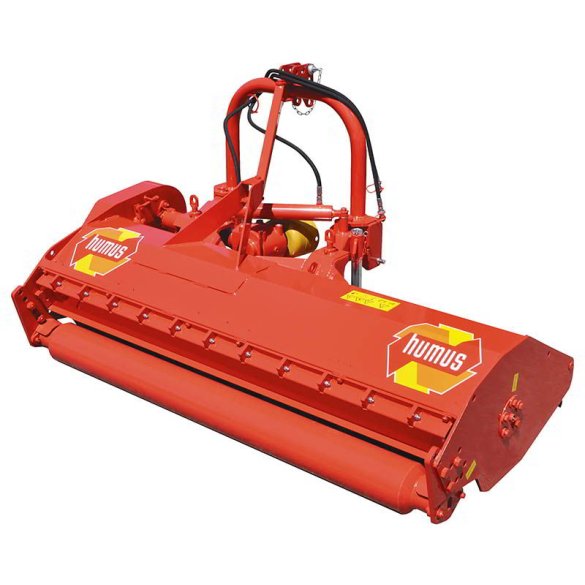

Flap mulcher for mulching woody parts of vines and other green parts, model KM.
KM 145 |
KM 155 |
KM 180 |
KM 200 |
KM 200 |
|||
|---|---|---|---|---|---|---|---|

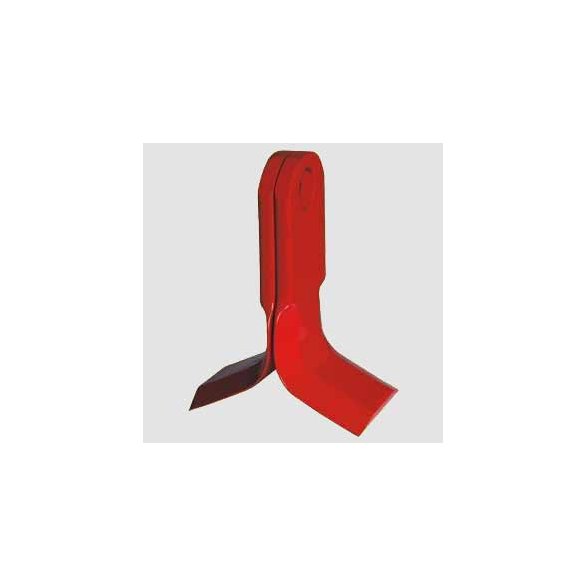

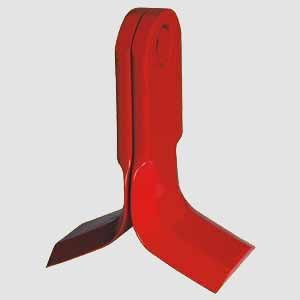

| Y“-type blades: | pcs. | 44 | 48 | 54 | 60 | 66 | |

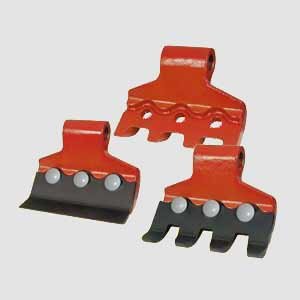

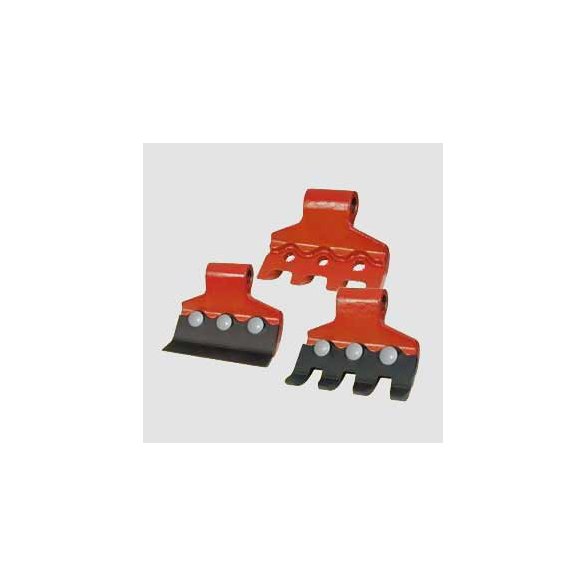

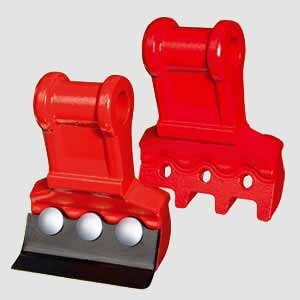

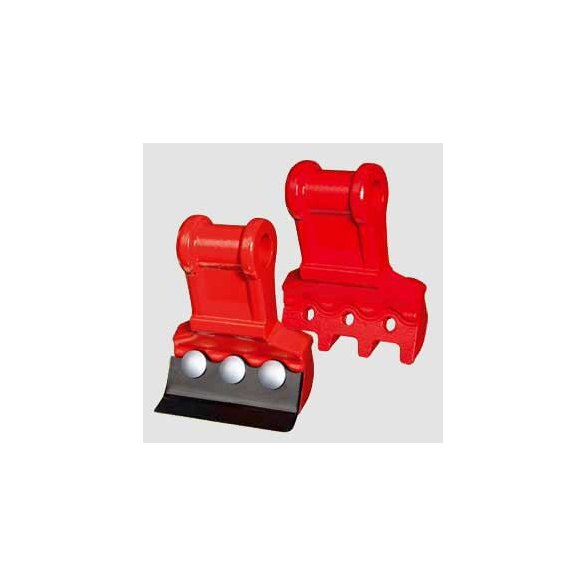

| System flails: | pcs. | 12 | 12 | 14 | 16 | 16 | |
| Working width: | m | 1,45 | 1,55 | 1,80 | 2,00 | 2,20 | |
| Overall width: | m | 1,56 | 1,70 | 1,95 | 2,15 | 2,35 | |
| Housing height drive side : | mm | 571 | 571 | 571 | 571 | 571 | |
| Housing height drive side: | mm | 487 | 487 | 487 | 487 | 487 | |
| Max. lateral offset from tractor centre | m | 1,07 | 1,16 | 1,40 (1,12)* | 1,54 (1,20)* | 1,74 (1,32)* | |
| Power requirement* : | from kW / hp | 20 / 27 | 22 / 30 | 25 / 35 | 29 / 40 | 37 / 50 | |
| Rpm of PTO : | rpm | 540 / 1,000 – depending on the equipment | |||||
| Weight**: | approx. kg | 480 | 500 | 550 | 580 | 630 | |
* The power requirement also depends upon the grass density and grass height *** Weight may differ according to equipment
