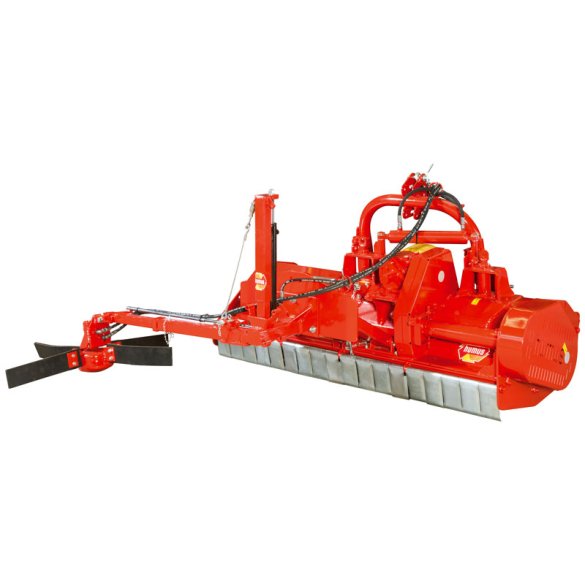

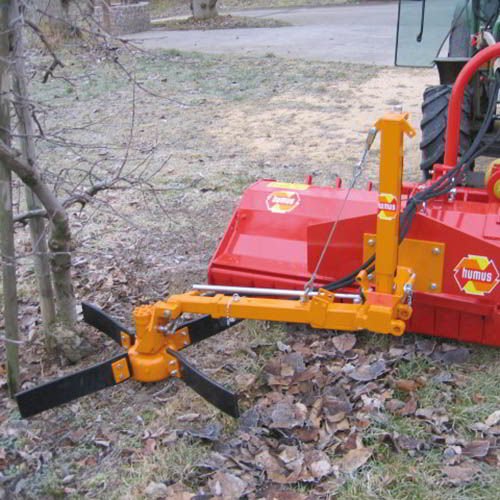

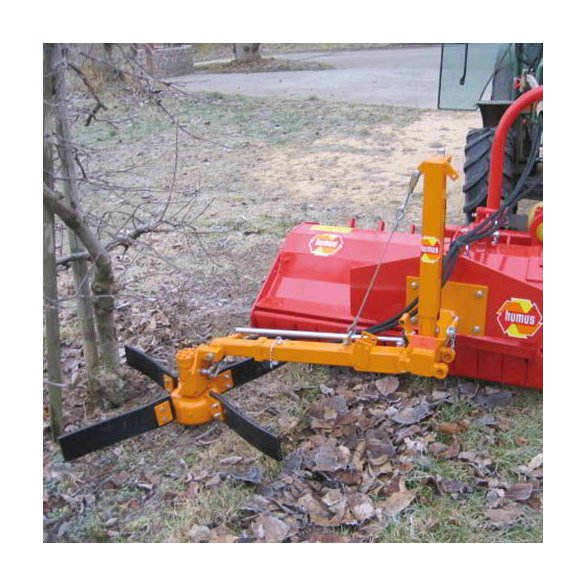

Flap mulcher for mulching woody parts of vines and other green parts, model KMN.
KMN 155 |
KMN 180 |
KMN 200 |
KMN 220 |
|||||
|---|---|---|---|---|---|---|---|---|

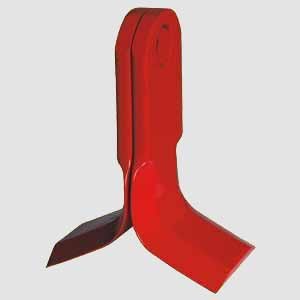

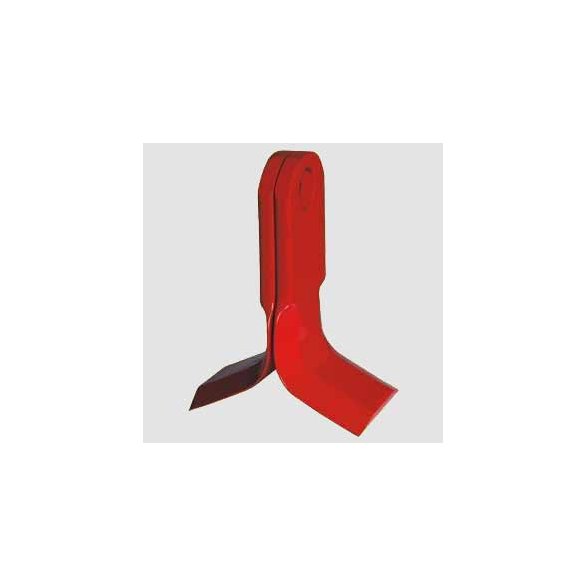

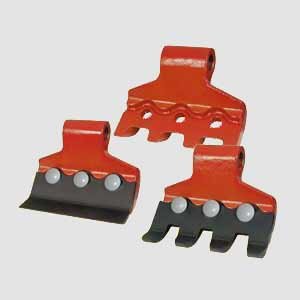

| „Y“-type blades: | pcs. | 48 | 54 | 60 | 66 | |||

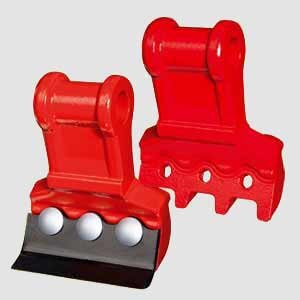

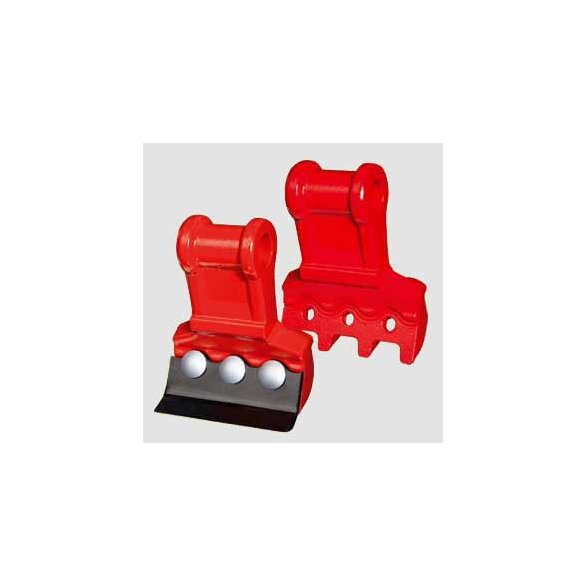

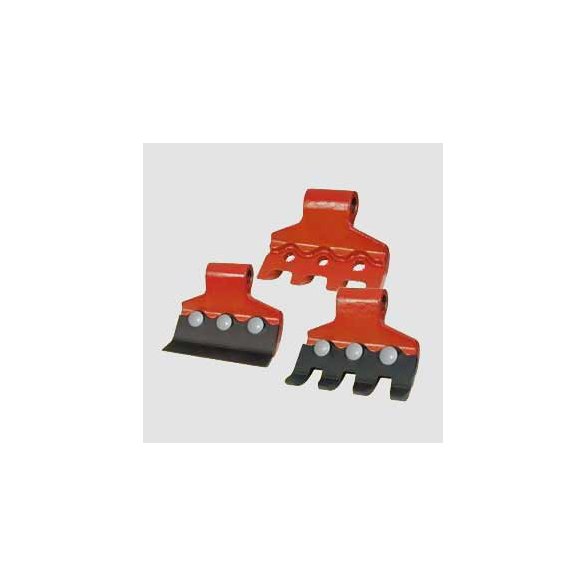

| System flails: | pcs. | 12 | 14 | 16 | 16 | |||
| Working width: | m | 1,55 | 1,80 | 2,00 | 2,20 | |||
| Overall width: | m | 1,70 | 1,95 | 2,15 | 2,35 | |||
| Housing height drive side : | mm | 571 | 571 | 571 | 571 | |||
| Housing height offset side : | mm | 487 | 487 | 487 | 487 | |||
| Max. lateral offset from tractor centre | m | 1,18 | 1,32 | 1,42 | 1,52 | |||
| Power requirement*: | from kW / hp | 37 / 50 | 37 / 50 | 37 / 50 | 37 / 50 | |||
| Rpm of PTO: | rpm | 540 or 1,000 – depending on the equipment | ||||||
| Weight**: | approx. kg | 620 | 630 | 640 | 690 | |||
