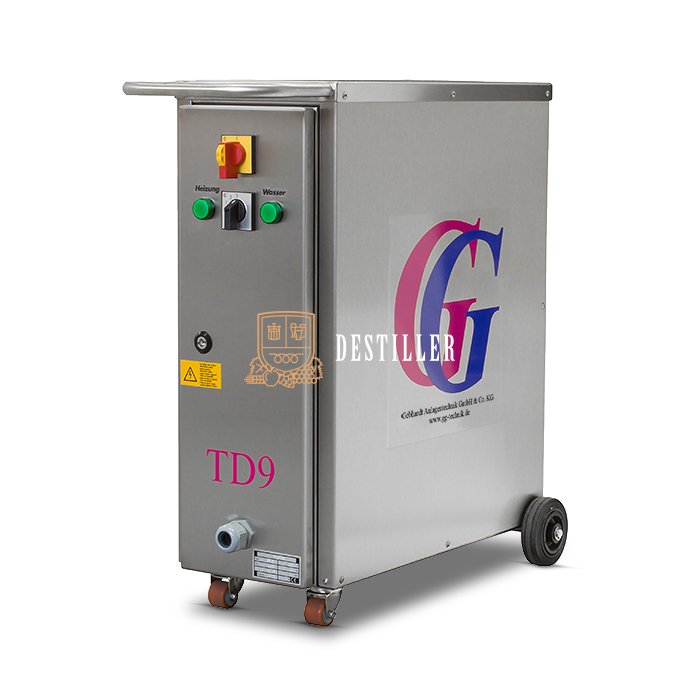

Steam generator
Hersteller: GG Technik
Produktcode: TD
This steam generator is extremely fast with a continuous supply of steam
fully operational in 60 seconds
always ready to
siehe vollständige Beschreibung
BESCHREIBUNG
This steam generator is extremely fast with a continuous supply of steam
- fully operational in 60 seconds
- always ready to steam
- continuous steam supply as long as needed
- water level monitoring to prevent water shortage and dry run
- simple to descale
This turbo steamer finds its optimal application in small to medium-sized wineries. It is used to the sterilization of sheet filters, candle filters and filling machines, to help clean and sterilizebarrels, wooden fermenters and tanks - , or to remove wine stone.
Specifications:
Electrical power rating: 9.9 kW
Electrical connection: 3 phase / N / PE 400 V AC 50 Hz
Electrical connector: male CEE 5 pole 16 A
Mains cable: approx. 5 m
Fusing: 16 A
Water connection: GeKa coupling
Steam output connection: NW 25
Minimum water pressure: 2.5 bar
Maximum steam pressure: 2.5 bar
Amounts of steam: 15 kg per hour
Weight: approx. 50 kg
Length x width x height: 760 mm x 345 mm x 690 mm
Weitere Produkte dieses Herstellers
The bag-in-box filler BBF6 is a semiautomatic filling machine.
The BBF6 weighing system, by which the bag contents are determined, can be calibrated. With this machine you are able to fill

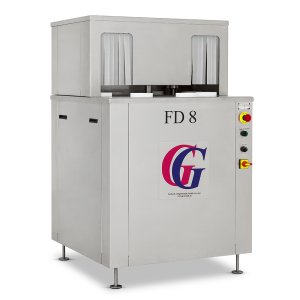

The bottle steamer has been developed for preheating and sterilizing the bottles before hot filling. With a shaped casting fitting for the bottle, it is also guaranteed that the bottle mouth
