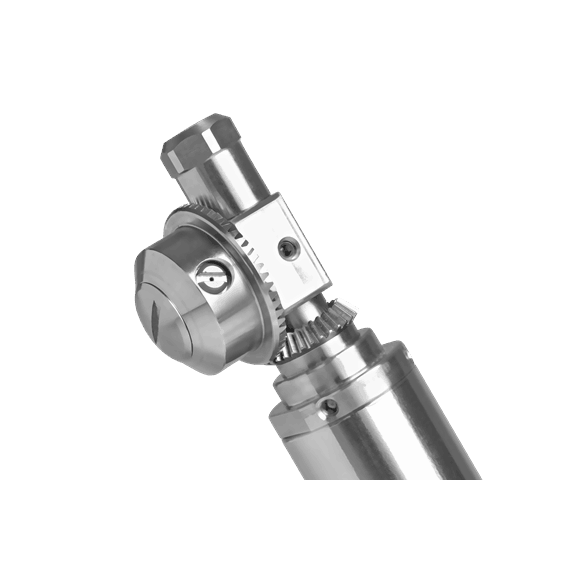

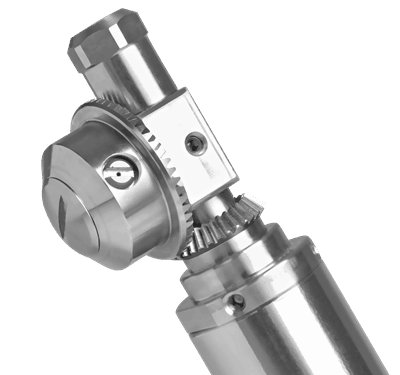

Cleaning Head R40
Hersteller: MOOG Cleaning Systems
Produktcode: R40
High-pressure head for washing and disinfecting tanks.
The tank cleaner R40 has a 3D rotating spray head with 360° spray coverage. Its
siehe vollständige Beschreibung
BESCHREIBUNG
High-pressure head for washing and disinfecting tanks.
The tank cleaner R40 has a 3D rotating spray head with 360° spray coverage. Its compact 40mm head enable a breadth of applications. The high-pressure nozzles are built into the head unit.
Applications
For complete cleaning of production, transportation as well as storage tank interiors.
| Drives | Water-hydraulic, electric or compressed air |
| Shaft length | 140 / 170 / 300 (water-hydraulic only) 500 / 700 / 1000 / 1500 / 2000 individual specialty lengths = 500 to 4000 [mm] |
| Working pressure | Up to 250 [bar] |
| Flow rate | Up to 50 [l/min] |
| Temperature | -30 to +120 [°C] |
| Nozzles | Number of 2 / 3 / 4, angle 0° / 5° / 15°, thread M6 |
| Water connection | 3/8‘‘ / 1/2‘‘ / M22x1,5 |
| Opening size for installation | Ø > 50 (for automatic retraction Ø > 64) [mm] |
| Material | Cleaning head and shaft entirely 316L |
| Sealant | FPM Viton / FFKM Perfluor / EPDM |
