Cleaning Head RC
Hersteller: MOOG Cleaning Systems
Produktcode: RC

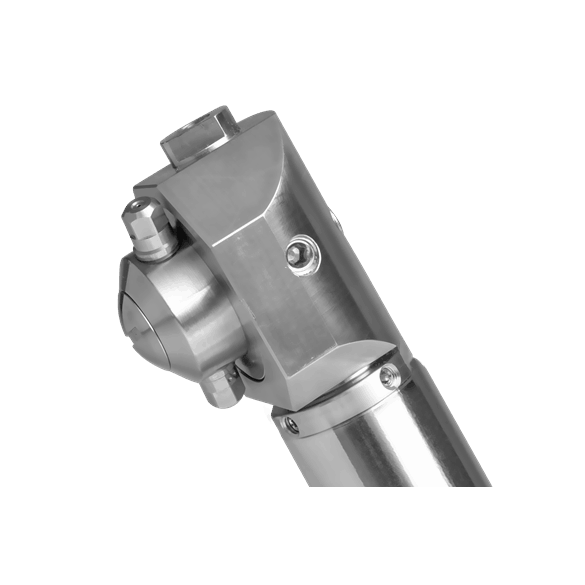

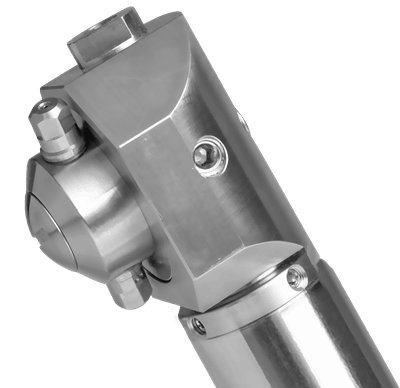

The RC has a 3D rotating spray head with 360° spray coverage. The gearwheels are fully mechanically encapsulated to protect from dirt and
siehe vollständige Beschreibung
BESCHREIBUNG
The RC has a 3D rotating spray head with 360° spray coverage. The gearwheels are fully mechanically encapsulated to protect from dirt and damage.
Applications: For complete cleaning of production, transportation as well as storage tank interiors.
| Article-No. | RC |
| Drives | Water-hydraulic, electric or compressed air |
| Shaft length | 140 / 170 / 300mm (water-hydraulic only) 500 / 700 / 1000 / 1500 / 2000mm individual specialty lengths = 500 to 4000mm [mm] |
| Working pressure | Up to 250 [bar] |
| Flow rate | Up to 50 [l/min] |
| Temperature | -30 to +120 [°C] |
| Nozzles | Number of 2, angle 0° / 5° / 15°, thread 1/8‘‘ |
| Water connection | 3/8‘‘ / 1/2‘‘ / M22x1,5 |
| Opening size for installation | Ø > 56 (for automatic retraction Ø > 77) [mm] |
| Material | Cleaning head and shaft entirely 316L |
| Sealant | FPM Viton / FFKM Perfluor / EPDM |
