BESCHREIBUNG

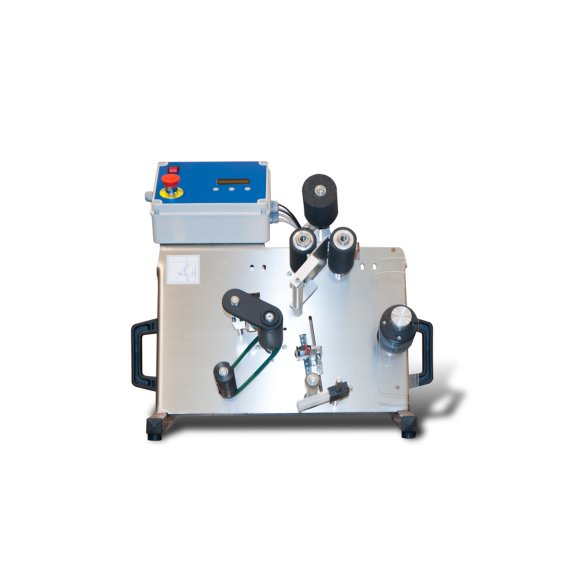

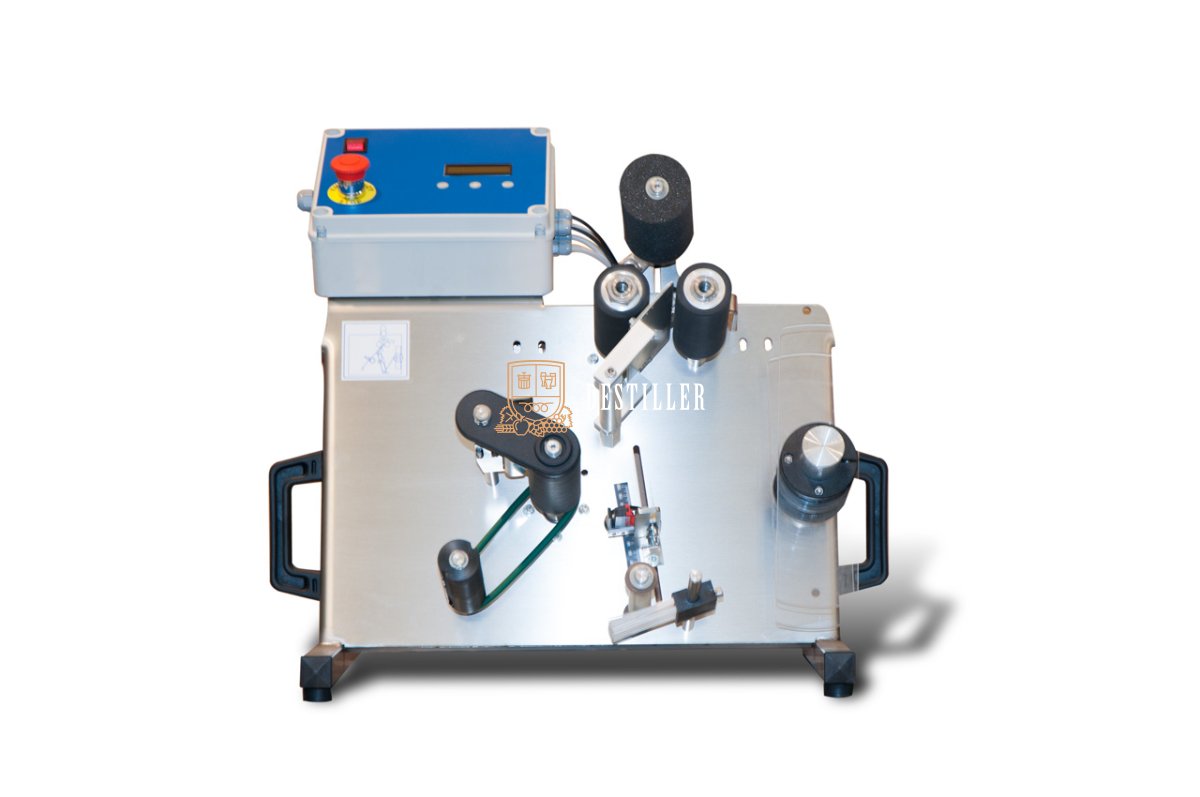

EKO-10 is a semi-automatic table-top labelling machine, able to stick front and back label during the same cycle. This machine allows to label round glass bottles but also square bottles, pots and other plasic products. With appropriate options it is possible to read reference marks, to stick a label later, to label square bottles, to stick transparent labels and to install a stamping unit.
The machine has an essential stainless steel structure and a ribbed roller for the silicone paper with quick releasing. It is in conformity with EC safety standards and the electronic board with microprocessor enables to use different labelling variants.

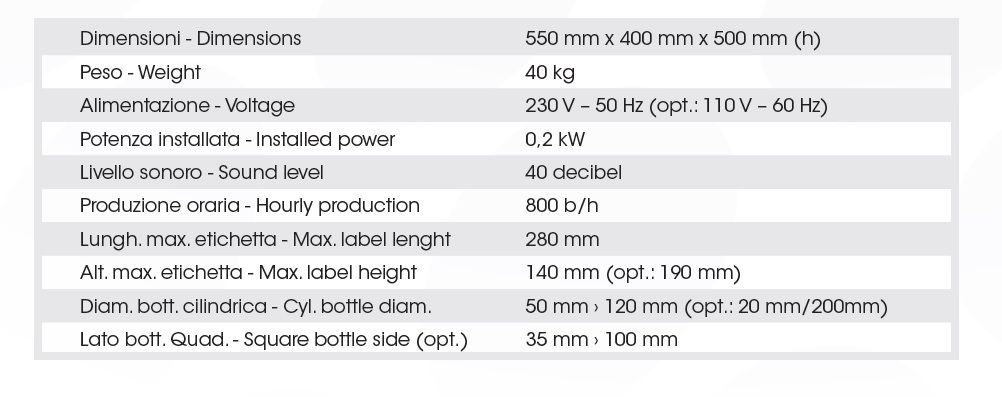

- Hourly production: 800 b/h.
- Container is inserted inclined (start with photocell).
- Adjustable pressure on container during the labelling operation.
- Label application error tolerance: +/- 2 mm (with cylindrical containers).
- Wraparound labels up to a maximum width of 280 mm.
- Suitable for cylindrical sizes between 45 mm and 120 mm (on request until 35 mm).
- An ink stamping unit or a heat transfer marker may be installed.
- Label roll with internal diameter of 76 mm (on request 40 mm) and external diameter of 270 mm.
- Paper height: max. 140 mm (on request until 190-250-300 mm).
- Power supply: 230 V single phase – 50 Hz (on request other voltage and/or 60 Hz).
- Consumed power: 0.20 KW.
