Mobile barrel cleaning system

Produktcode: FR1

System for cleaning wooden barrels used for wine or other alcohol, in which the barrels are loaded manually. To make the cleaning process easy and siehe vollständige Beschreibung

Produktbeschreibung drucken

Gesamte Beschreibung

BESCHREIBUNG

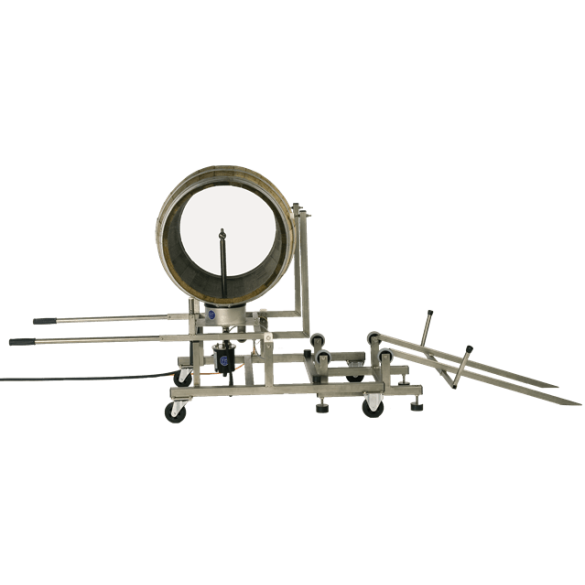

System for cleaning wooden barrels used for wine or other alcohol, in which the barrels are loaded manually. To make the cleaning process easy and quick, the barrel is rolled onto the loading ramp and manually moved to the cleaning position.

Article-No.	126.1004.0	126.1024.0
For barrels	225 - 300 [L]	225 - 600 [L]
Drives	Electric drive VAC 230 / 115	Electric drive VAC 230 / 115
Flow rate high pressure pump	[l/min]	[l/min]
Working pressure recommended	80÷120 [bar]	80÷120 [bar]
Working temperature max.	150 [°C]	150 [°C]
Rotation speed	17 [t/min]	17 [t/min]
Minimum size of bunghole	38	38
Water connection	3/8"	3/8"
Weight	50 [kg]	50 [kg]
