Peristaltic pump for grapes Delta

Produktcode: DP02

The Delta DP pump is a peristaltic pump with two functions:
• Smooth, continuous transfer of grapes.
• Quality siehe vollständige Beschreibung

Produktbeschreibung drucken

Gesamte Beschreibung
Dateien zum Herunterladen

BESCHREIBUNG

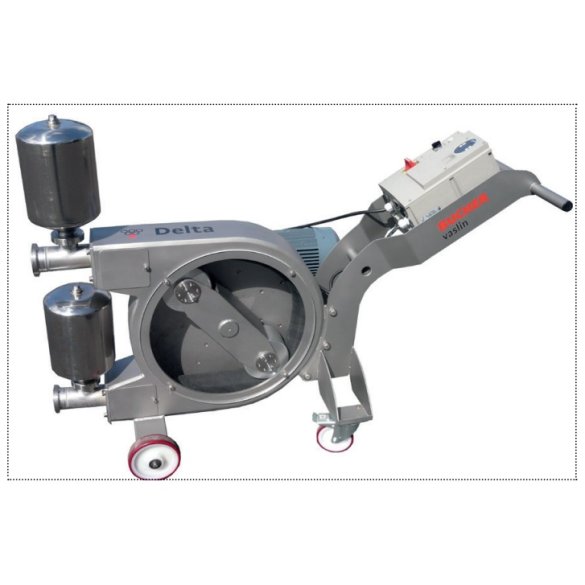

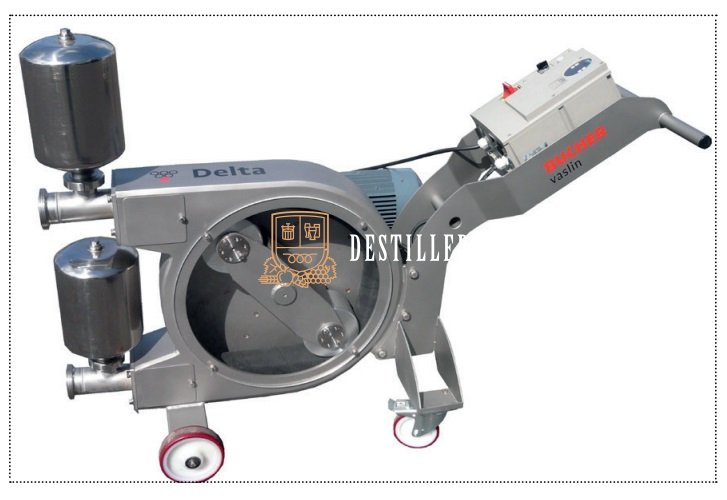

The Delta DP pump is a peristaltic pump with two functions:
• Smooth, continuous transfer of grapes.
• Quality transfer of wine.

Pump for fresh grapes and wine.

Description

Body of pump in stainless steel AISI 304.
Hose in food grade material (EPDM).
Motor controlled by variable speed drive to regulate pump flow rate.
Pressure 3 bars.
Selfpriming -0,7 bars.
Control box with forward / backward pumping direction.
Pressure gauge to stop the pump in case of overpressure on backpressure. •
Pressure gauge can be used as safety valve when filling barrels.
Stainless steel chassis with 4 wheels (2 on swivel).

Design features

Pump for wine
Stainless steel clearing house that can be dismantled with connector DIN.
Aspiration vacuostat for pump Delta DP for wine (option).
Remote control (option).

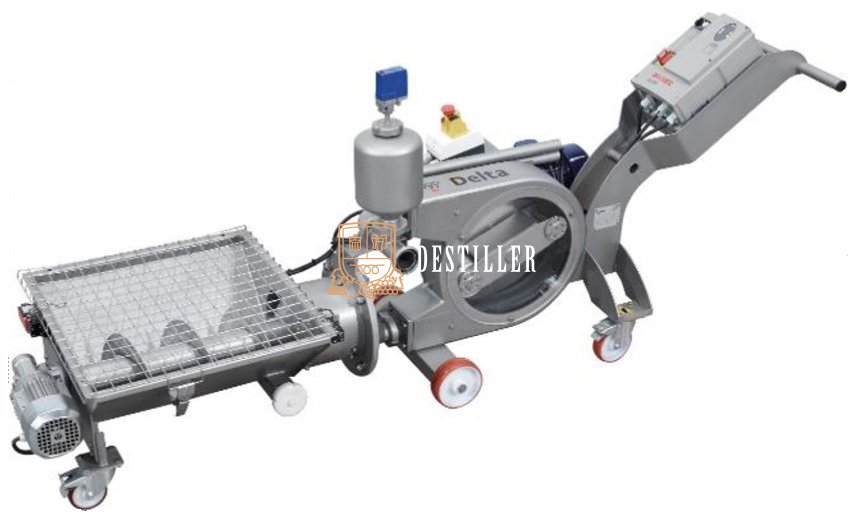

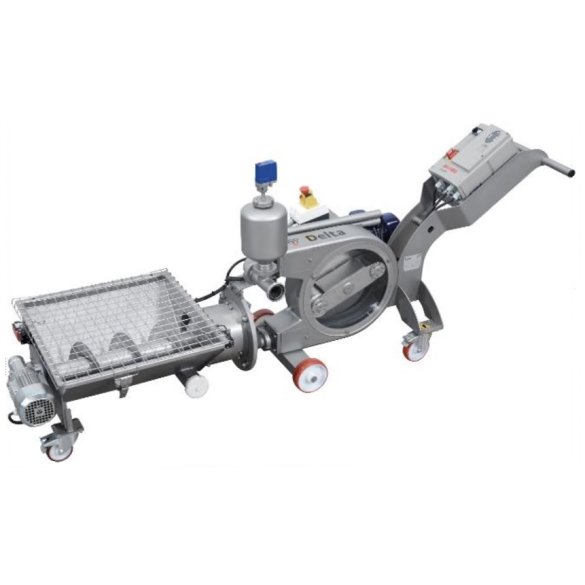

Pump for grapes

Stainless steel feeding hopper with endless screw.
Stainless steel feeding hopper with screw and variable speed (option).
Level sensor (option).

Pump Delta

Dateien zum Herunterladen

Peristaltic pump Delta DP Bucher vaslin

Book-Delta-EN
