Plattenfilter für Wein, Speiseöl, Essig, Crystal Pro

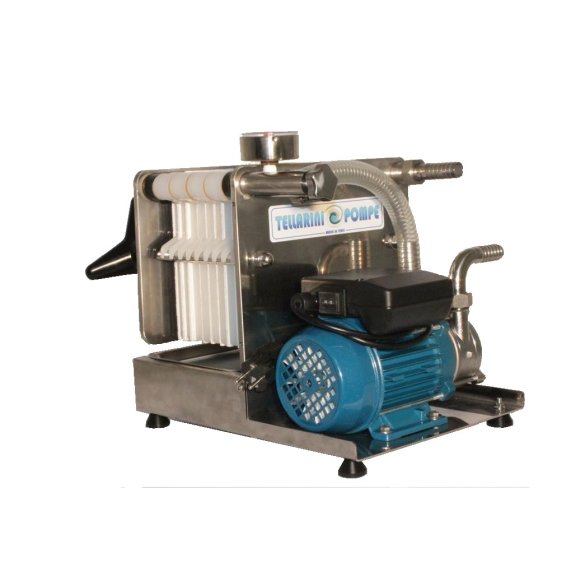

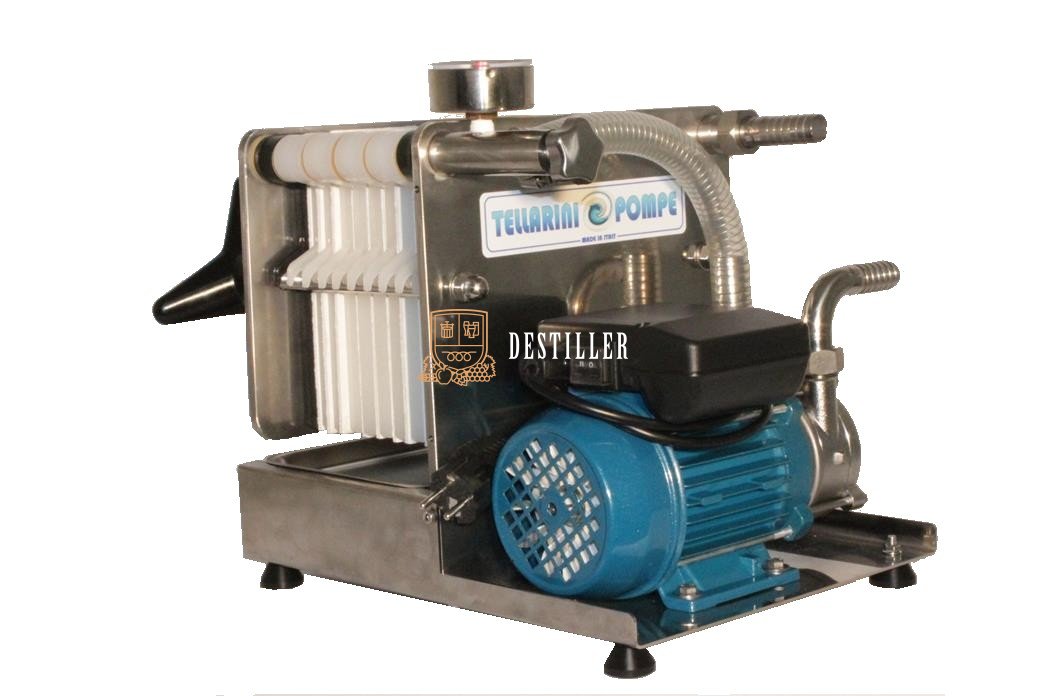

Plate filter for wine, edible oil, vinegar equipped with a pump, mounted on the base. The filtering pressure is monitored by a pressure gauge and can be adjusted by a dedicated valve. The liquid that drips from the filter unit is collected in a large tank (2.5 liters),

The product is particularly suitable for:
oenology - wine, musts
food industry - oil, vinegar, brine, fruit juices, beer wort, milk.

Filtration capacity: 150 ÷ ​​​​300 l / h
Maximum lifting height: 18.0 m
Maximum filtering temperature: 40 ° C
Maximum transfer temperature: 90 ° C

Includes connectors for nylon hoses with a diameter of 20 mm.

Material of construction:
Pump parts: AISI 316
Flange: AISI 316
Shaft: AISI 316
Impeller: AISI 316
Seals: NBR
Frame: AISI 304
Filter mounting plates: Moplen
