Peristaltic pump Kappa

Produktcode: Kappa PR26 LT – PR39 LT

Kappa PR26 LT – PR39 LT
Stainless steel peristalƟc pump for pumping destemmed‐ crushed grapes, fermented marc siehe vollständige Beschreibung

Produktbeschreibung drucken

BESCHREIBUNG

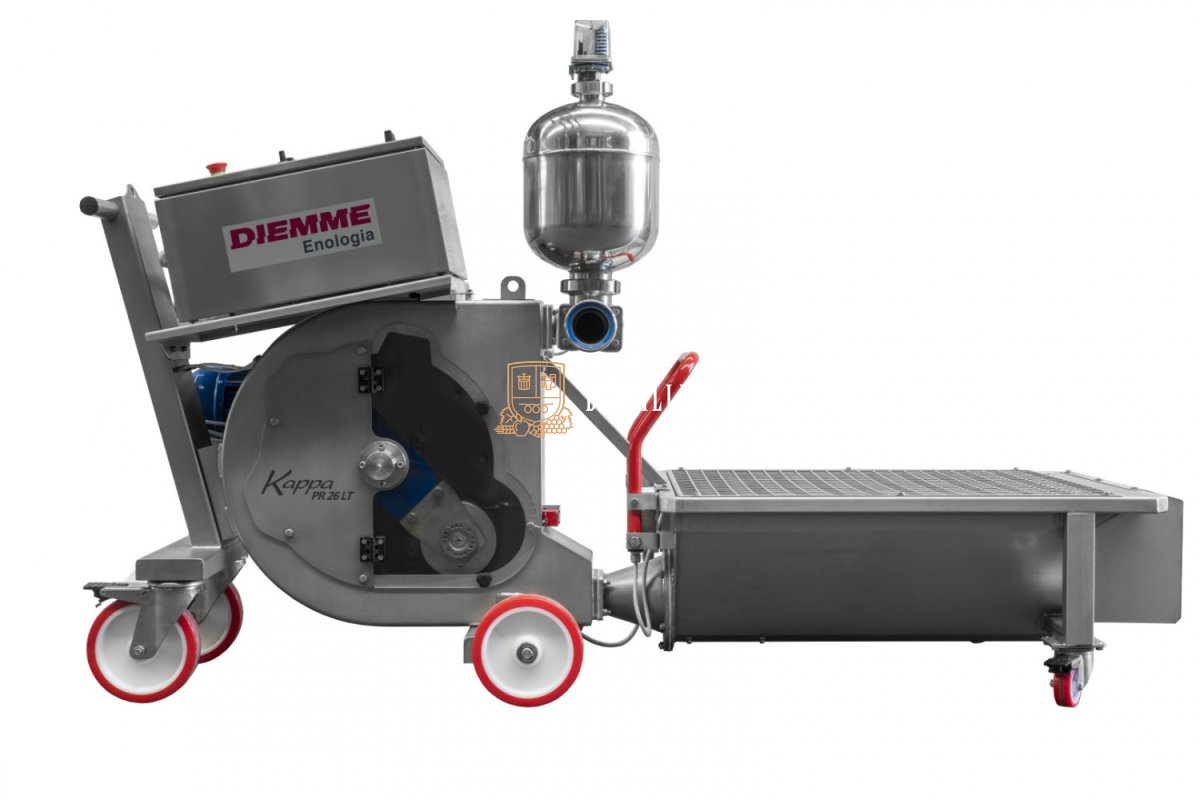

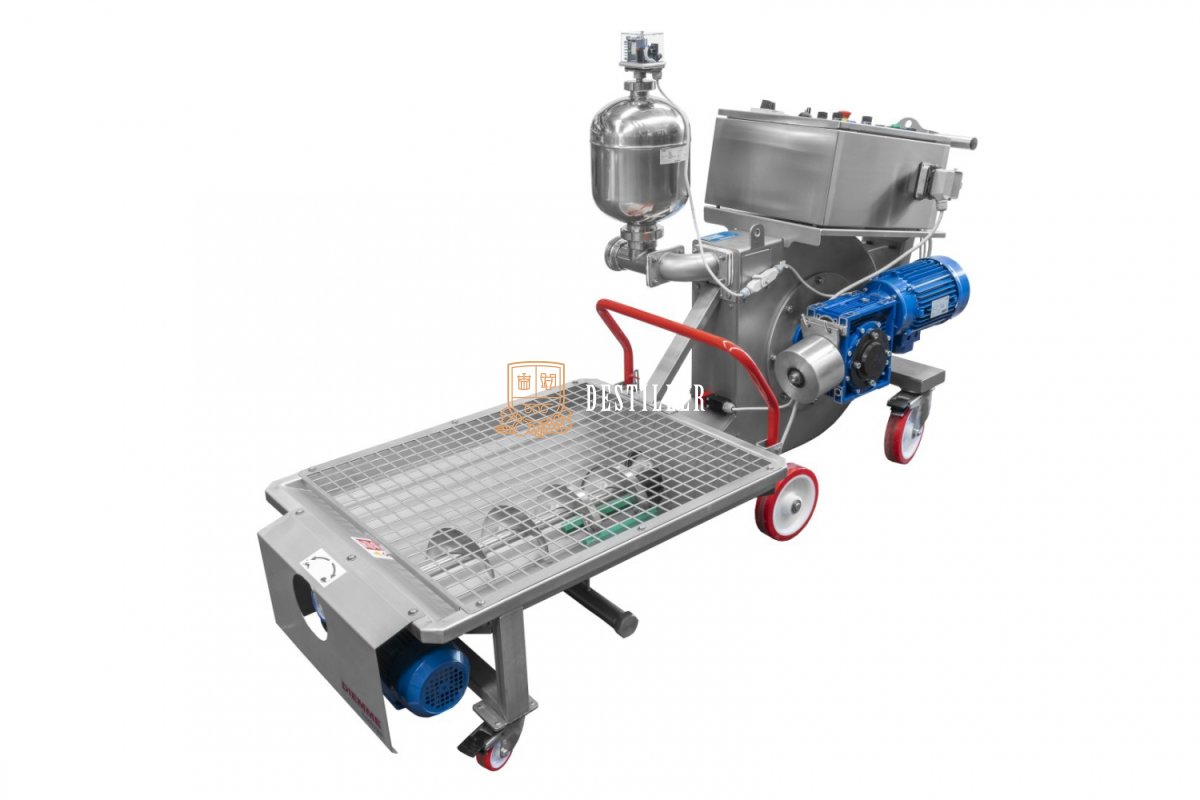

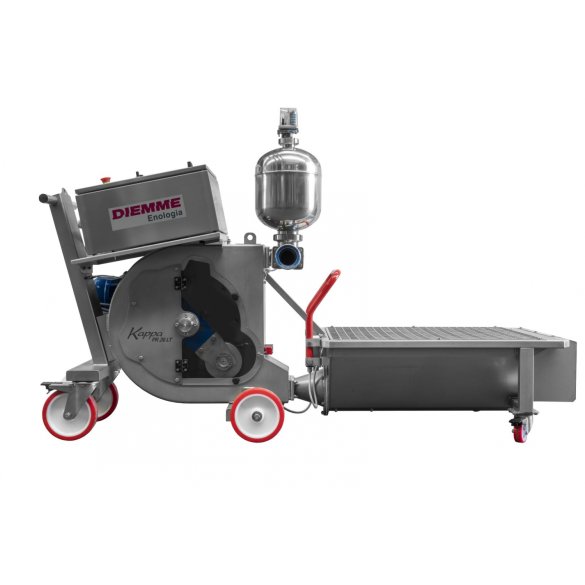

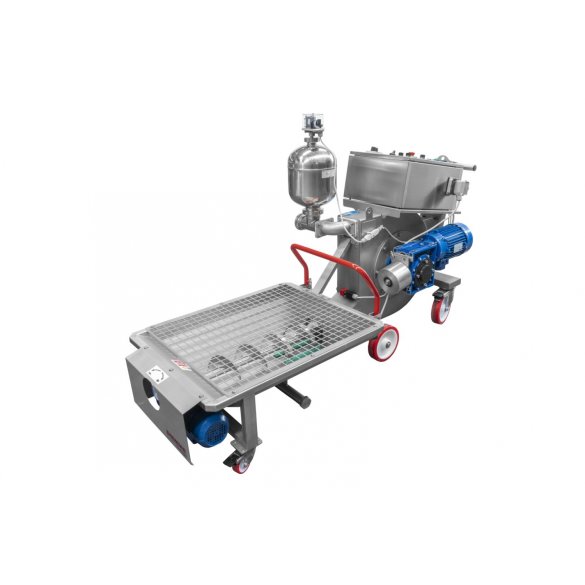

Kappa PR26 LT – PR39 LT
Stainless steel peristalƟc pump for pumping destemmed‐ crushed grapes, fermented marc and liquids. Pump complete with expansion chambers for sucƟon/pushing back and safe‐ ty pressure switch. Control panel equipped with electronic variable frequency drive Inverter.

On demand:

RecepƟon tank equipped with moto‐variator
Radio control with funcƟons: start/stop, forward‐back, speed adjustment

Peristaltic pump

Projekte

Winery Powiercie, September 2022

Kompleksowe wyposażenie Winiarni Powiercie w urządzenia do przyjęcia winogron, zbiorniki, automatykę sterowania temperaturą fermentacji.

Dateien zum Herunterladen

Brochure_Kappa PR-OK
