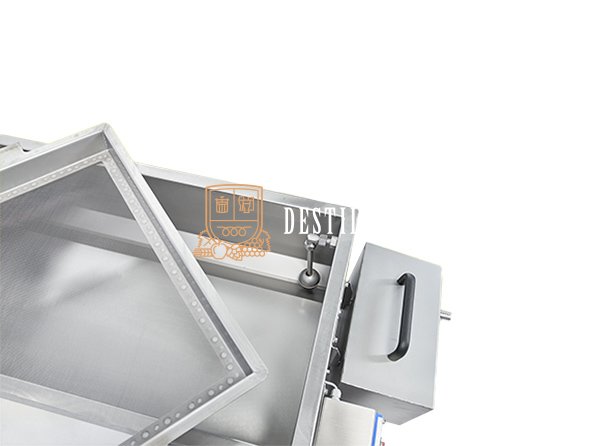

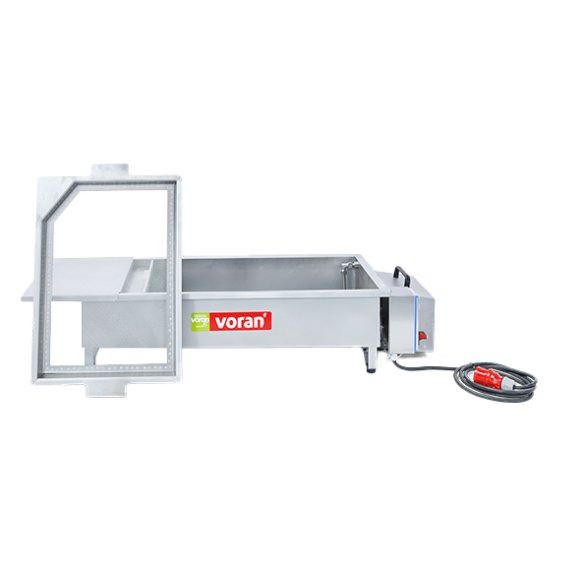

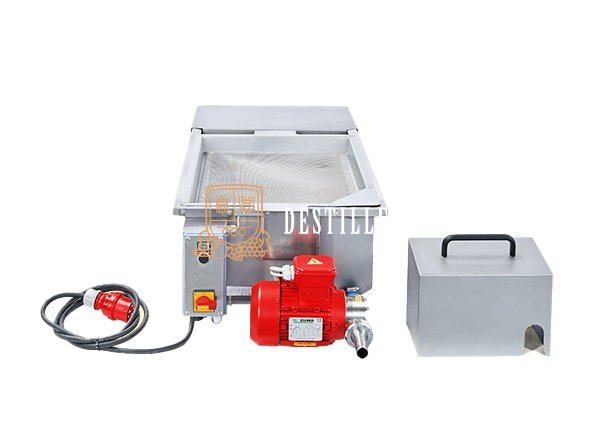

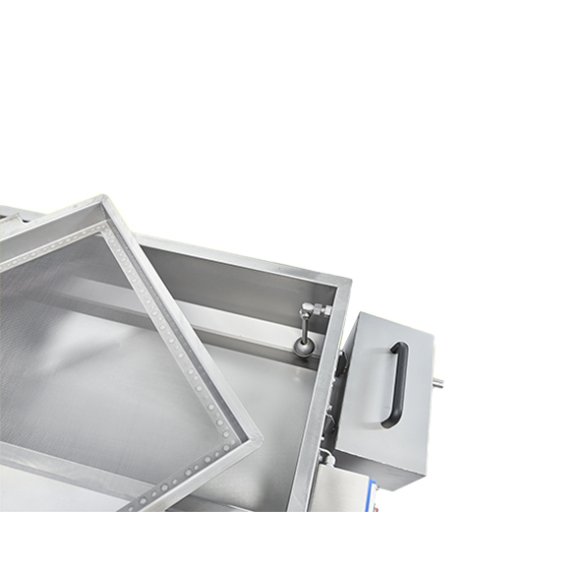

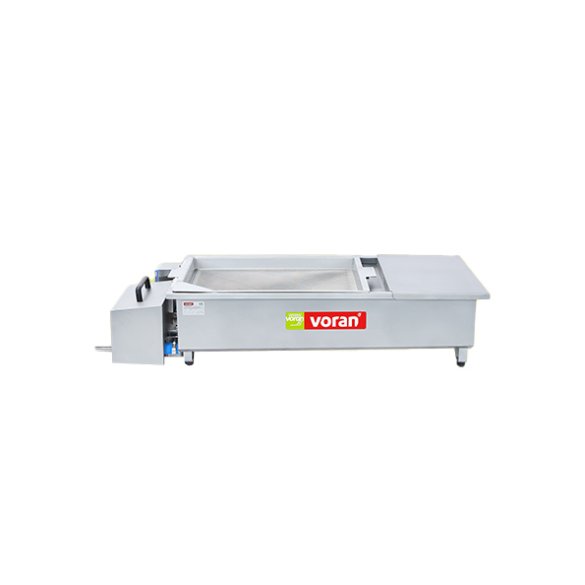

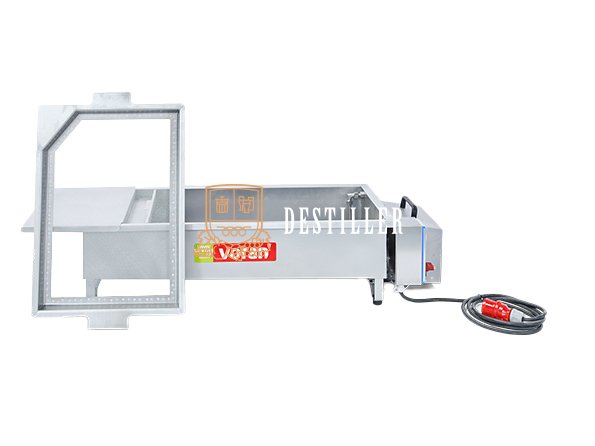

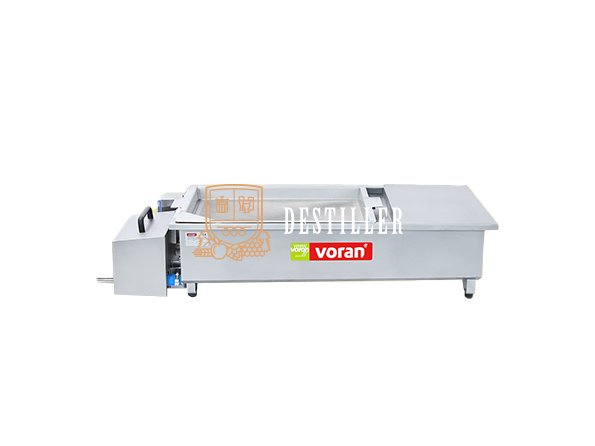

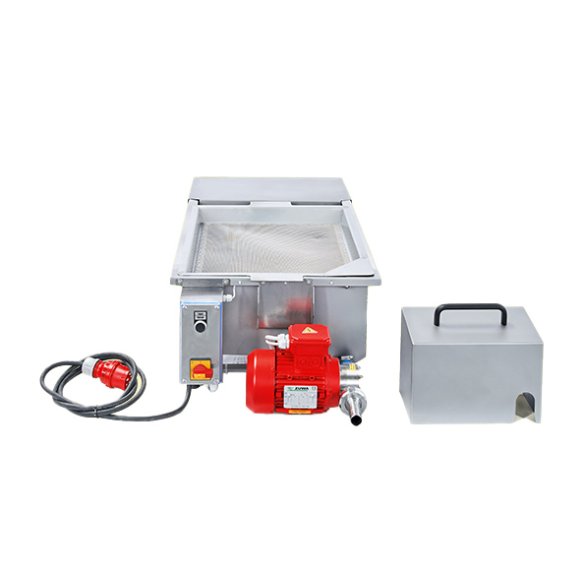

Collection basin with 1 mm coarse screen. Easy and safe operation thanks to fully automatic impeller pump. Juice collection tank is suitable for all Voran presses.
Thanks to the pump fresh juice can be transported for example to a pasteuriser or buffer tank. The pump is switched on and off automatically by means of a special fluid level sensor, after collecting the right amount of juice in the basin. The pump can also always be started manually by pressing the appropriate button.
| Technical data | |
|---|---|
| Scope of supply | screen 1 mm |
| Connection for juice outlet | 1 |
| Material | 1.4301 / AISI 304 |
| Weight | 30 kg |
| Height | 290 mm |
| Width | 510 mm |
| Length | 1 325 mm |
| Electrical protection | 16 A |
| Connected load | 400V 50Hz (dreiphasig) |
| Motor rating | 0,37 (0,75) kW (PS) |
| Nominal rating l/h | 1 800 l/h |
