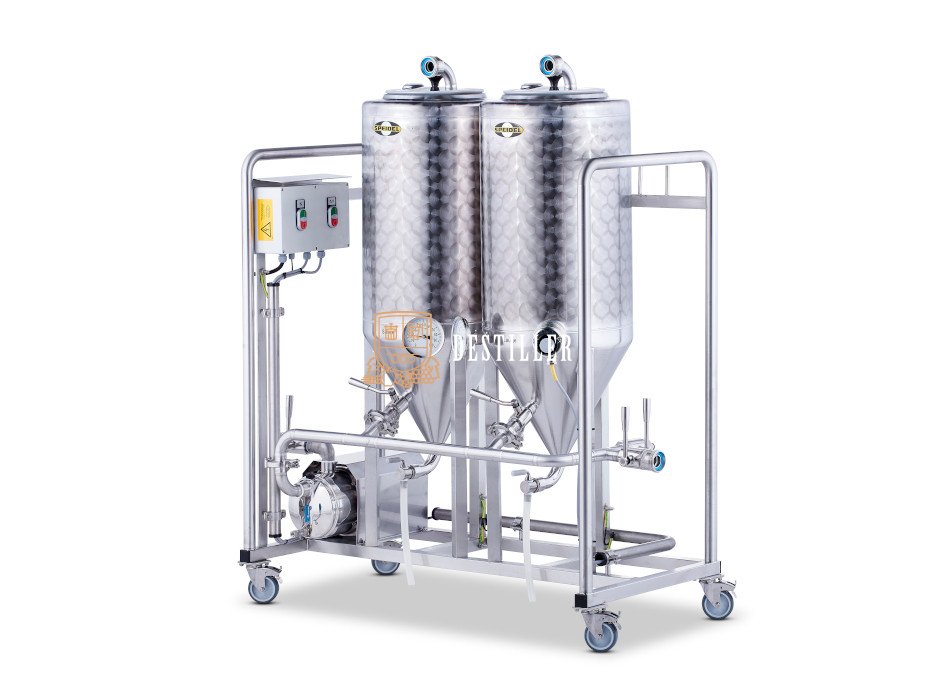

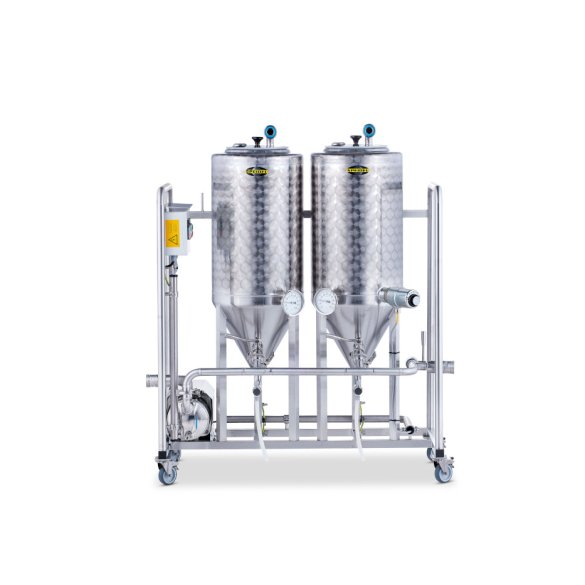

Tank cleaning - heating - mobile
Acid or lye is pumped into the fermentation tank to be cleaned, from there it is circulated via a CIP lance and then pumped back into the container after use.
In a closed system, e.g. plate cooler, from the storage tank in the circuit directly back into the storage tank.
Backflow in each case simply via a hose through the open lid back into the respective storage tank.
How to
Pre-rinse: Remove dirt
Cleaning: Lyes are run through the system parts
Rinsing 1: The cleaning medium is flushed out with water
Acidification: Lime deposits and lye scale are removed with the help of acid solutions (only necessary at certain intervals, not after each fermentation or brewing process)
Rinsing 2: The acid is flushed out with water
Product details

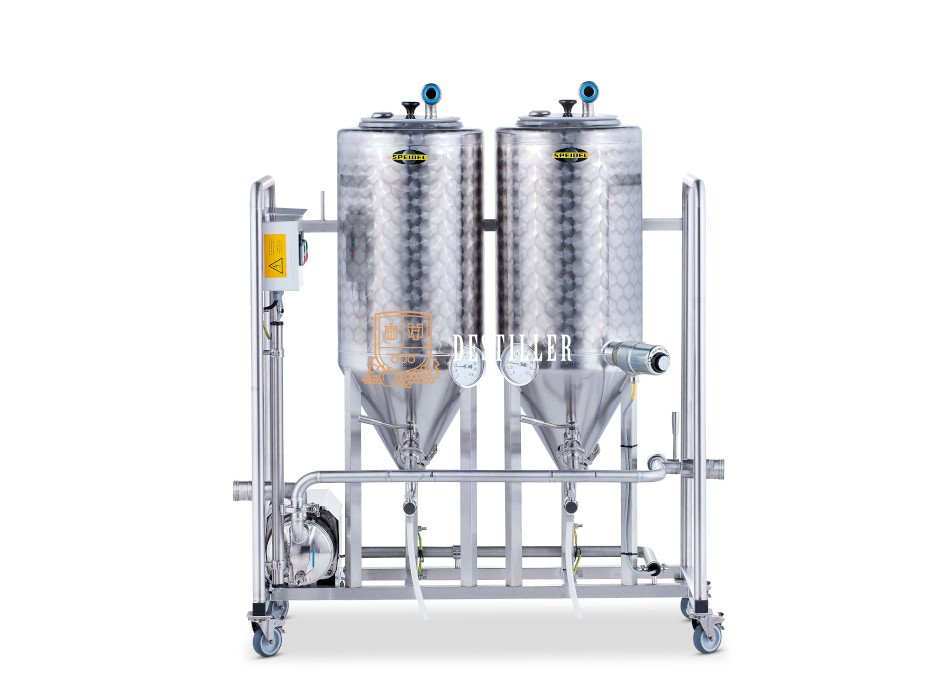

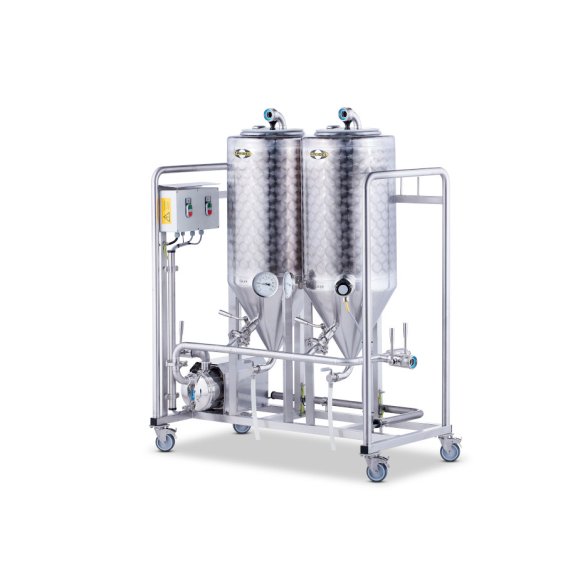

60l conical tank with temperature display for lye with heating device
60l cone tank with temperature gauge for acid
Connections DIN NW 25 for hose 1" plus connection option water Gardena

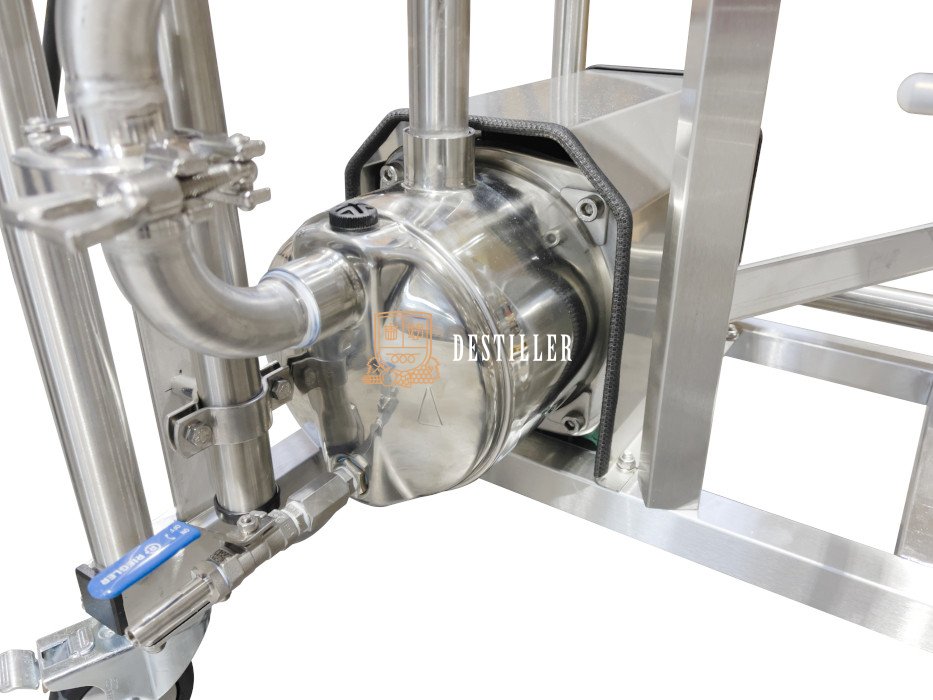

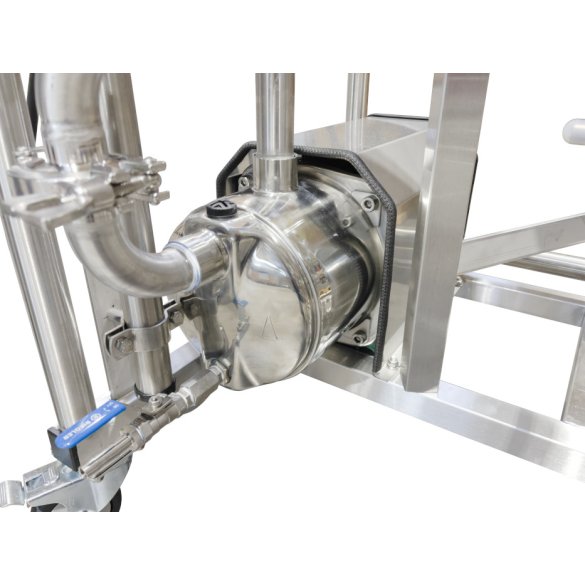

Delivery pump made of stainless steel 880W / 4.5bar / 4,500l/h

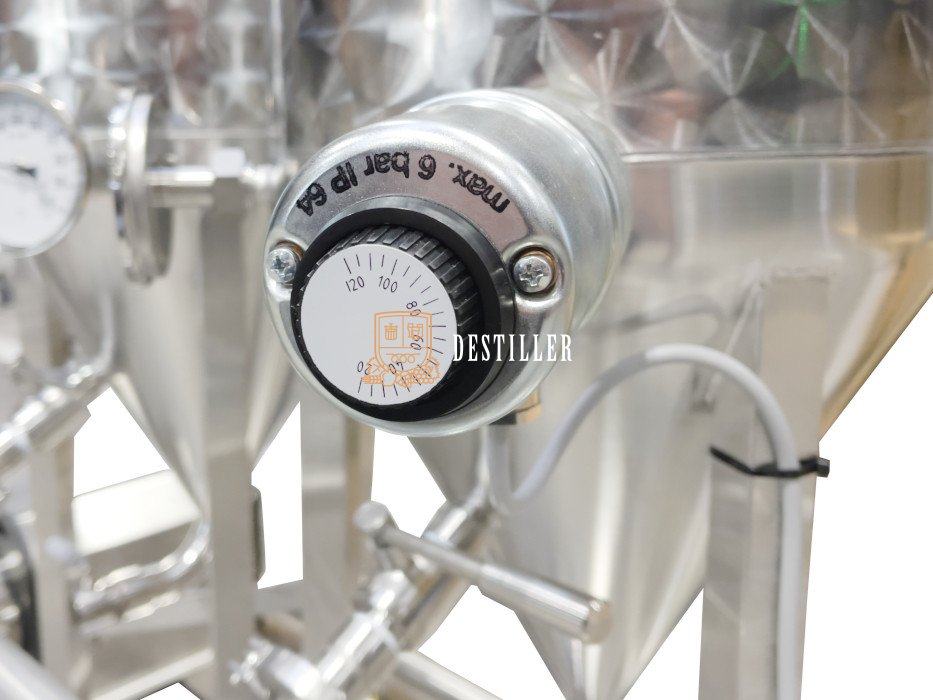

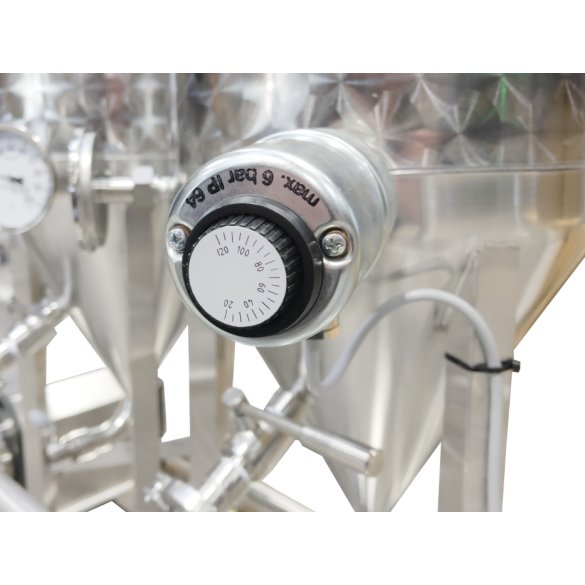

Heater in the suds tank - adjustable temperature

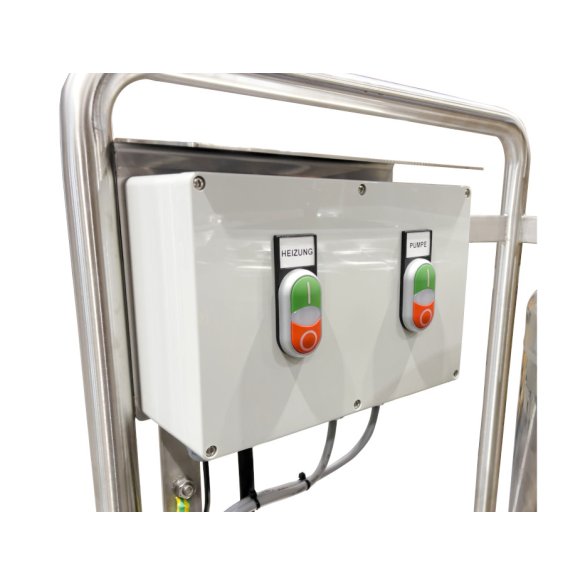

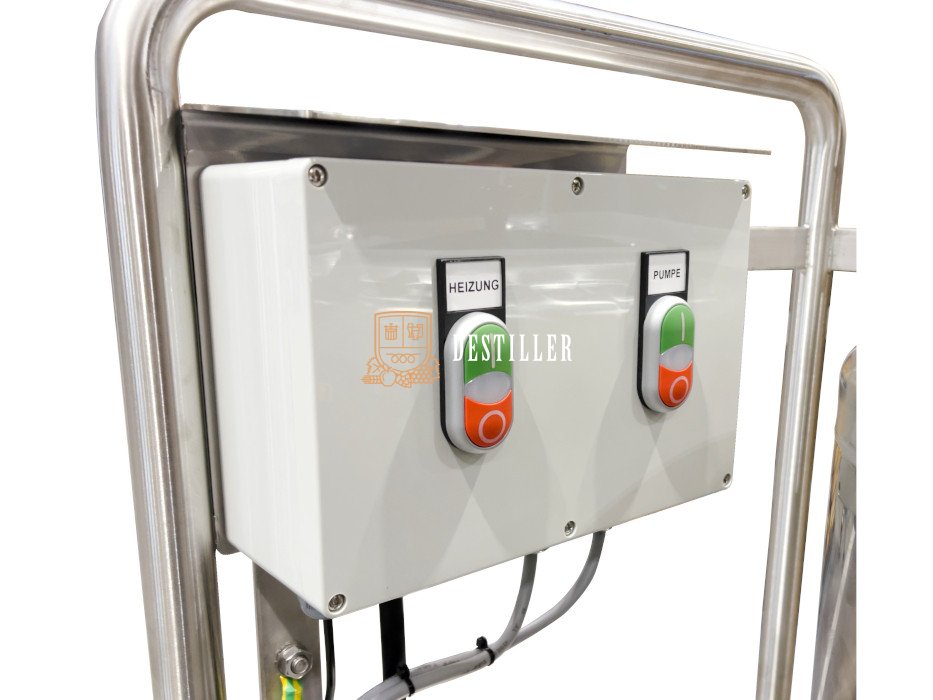

E-junction box with on/off for pump and heating
Connection voltage: 230V/50Hz
Connection cable 3m with Schuko plug
Movable with 4 castors
Compact and flexible in use
Dimensions
Height: 110cm
Width: 57cm
Length: 120cm
Weight: 60kg
