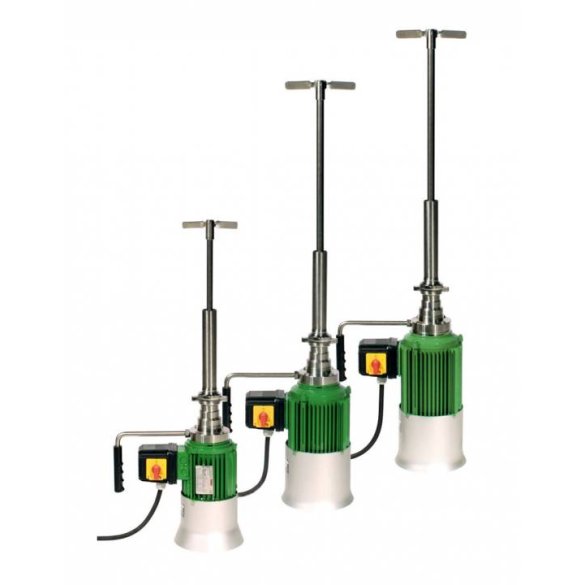

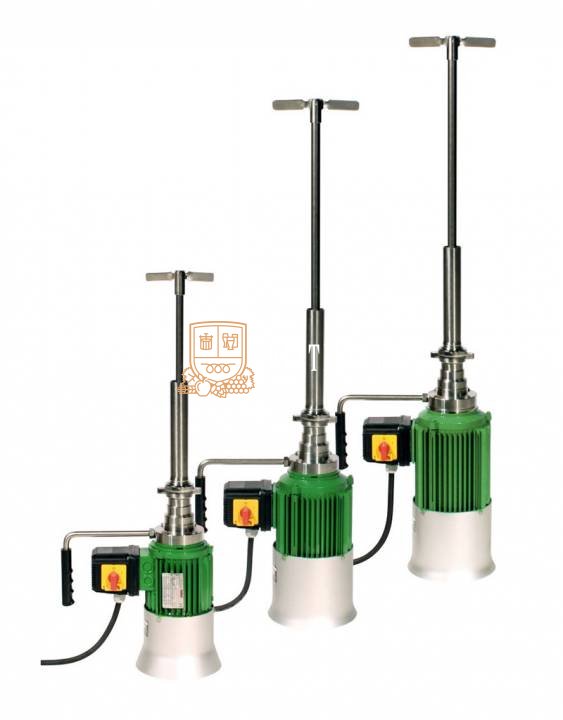

Stirrer with smooth speed control
Stainless steel hand mixer for mixing low viscosity media. Thanks to the movable agitator shaft and the folding propeller, it can be mounted in
siehe vollständige Beschreibung
BESCHREIBUNG
Stainless steel hand mixer for mixing low viscosity media. Thanks to the movable agitator shaft and the folding propeller, it can be mounted in the tank from the side using the handle provided for this purpose, through the ball valve or the top tank lid.
Thanks to the built-in inverter, even small quantities of drinks can be mixed particularly gently.
Standard equipment:
- high quality mechanical seal
- Motor protection switch
- 10m cable
- inverter.
| Model | for tanks volume | engine | rotation speed | weight |
|---|---|---|---|---|
| Model 1-FU | up to 15000 l | 400V / 0,37KW | 300 – 1400 obr./min | 16 kg |
| Model 2-FU | up to 35000 l | 400 V / 0,75 kW | 300 – 1400 obr./min | 20kg |
| Model 3-FU | up to 50000 l | 400 V / 1,5 kW | 300 – 1400 obr./min | 25kg |
