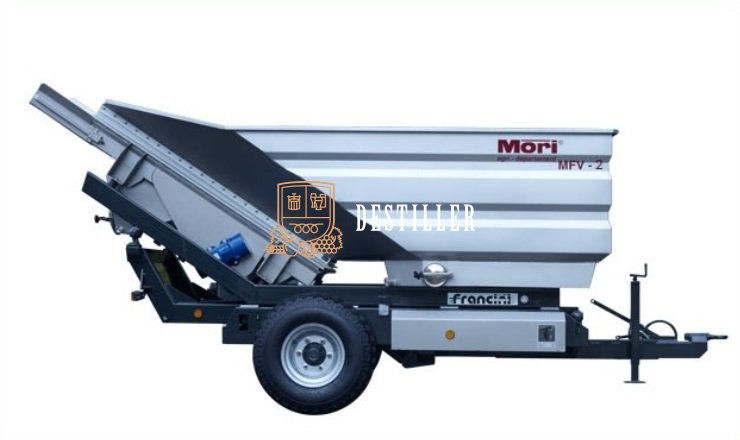

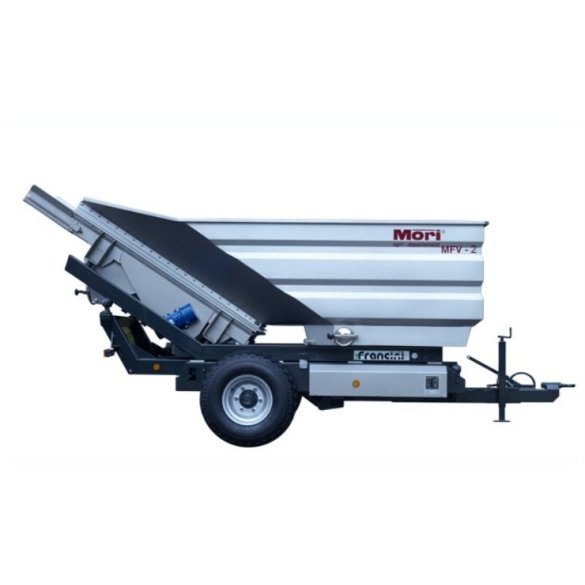

Vibrating harvester trolley. AISI 304 stainless steel tank, articulated frame with liftchin and hydraulic piston turning. Vibrating section for the unloading of grapes from manual or mechanicalharvesting. Discharge flow adjustment in operation, wort drainage grate,recovery compartment with inspection door and liquid drain valve. Allows you to feed the grapes directly into destemming without causing stress or breakage of the grapes,for greater speed and better quality in the processing of the raw material. Available in tipper or elevator/tipper versions.

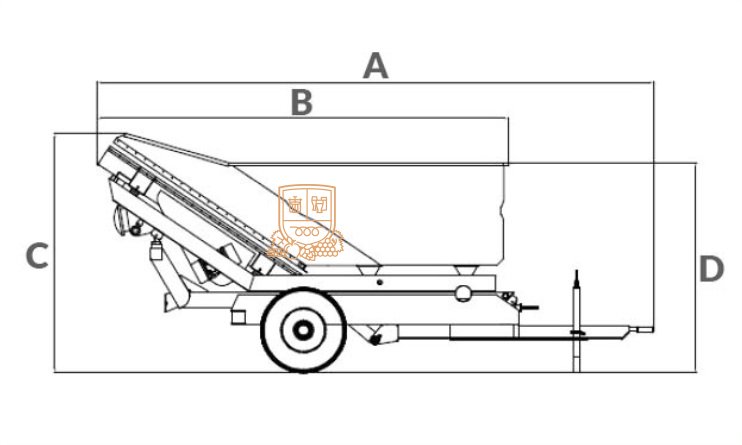

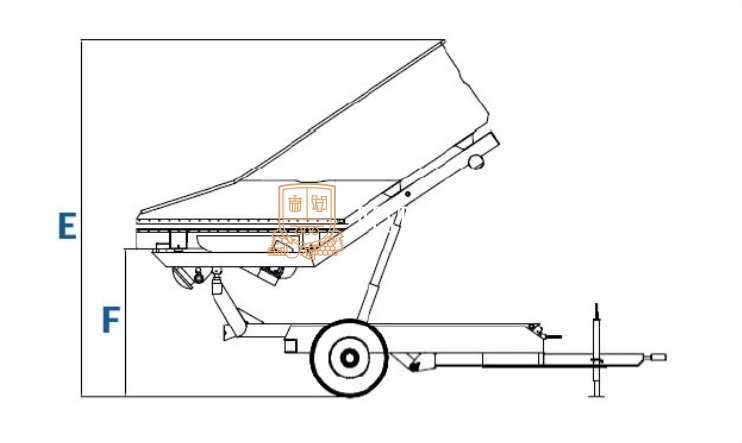

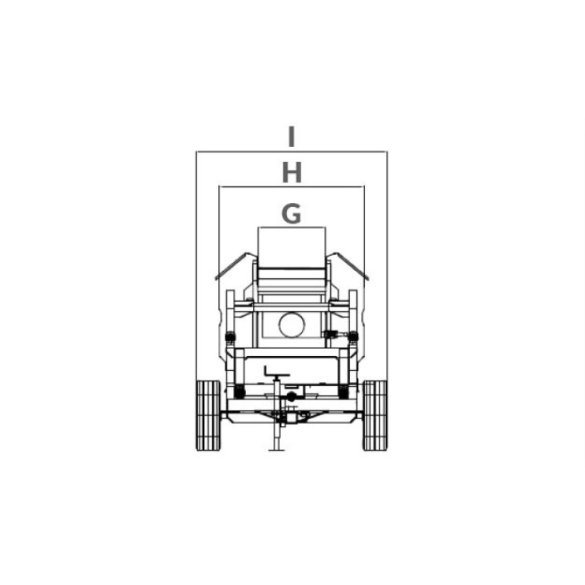

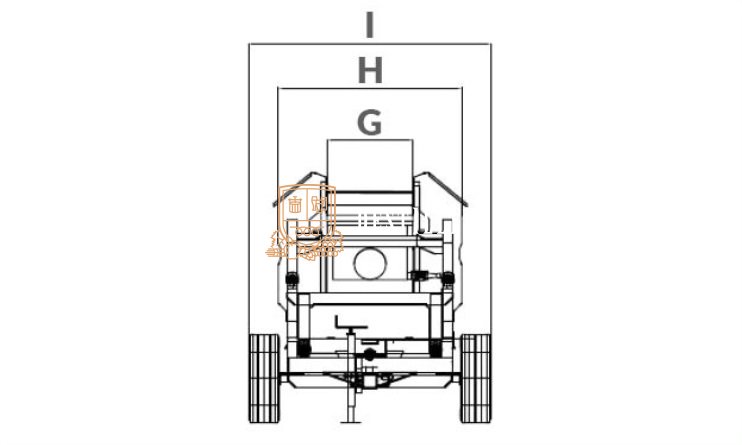

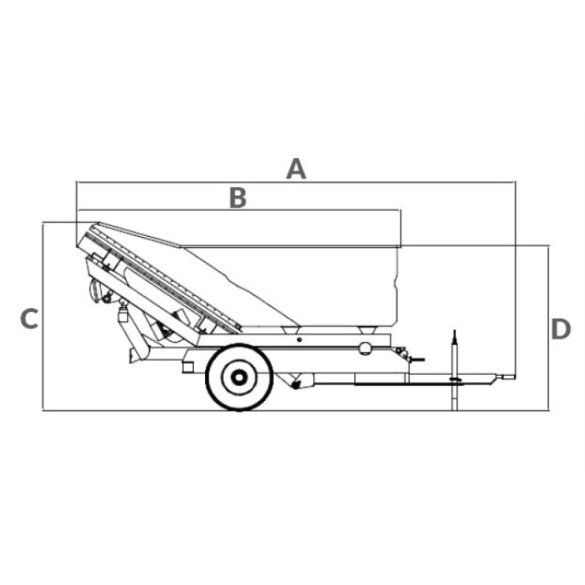

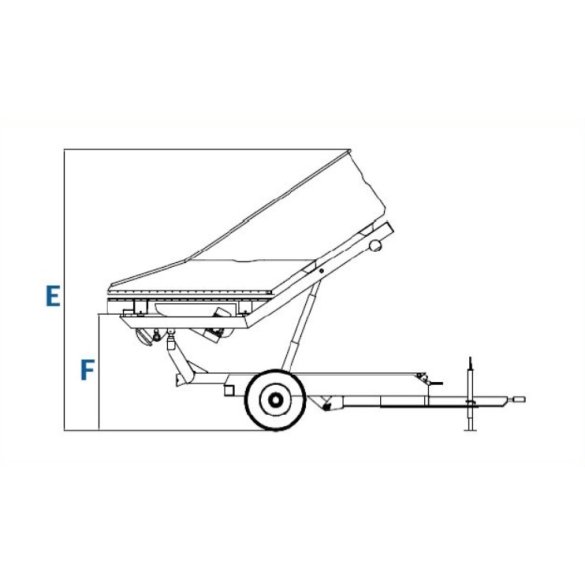

| A | B | C | D | G | H | I | K | M | Capacità Volume Capacité Kapazität Capacidad |
Massa Mass Masse Mass Masa |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| MFV 1/E | 4180 | 3120 | 1700 | 1410 | 3780 | 2050 | 1500 | 1300 | 600 | 2.2 m3 | 3 Ton. |
| MFV 2/E | 4780 | 3580 | 2100 | 1820 | 4550 | 2530 | 1950 | 1500 | 700 | 3.4 m3 | 5 Ton |
| MFV 3/E | 4780 | 3580 | 2100 | 1820 | 4650 | 2530 | 1950 | 1900 | 700 | 4.6 m3 | 5 Ton |
