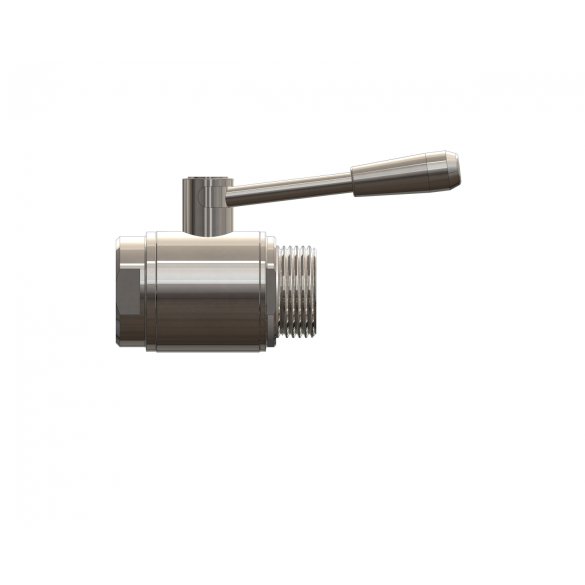

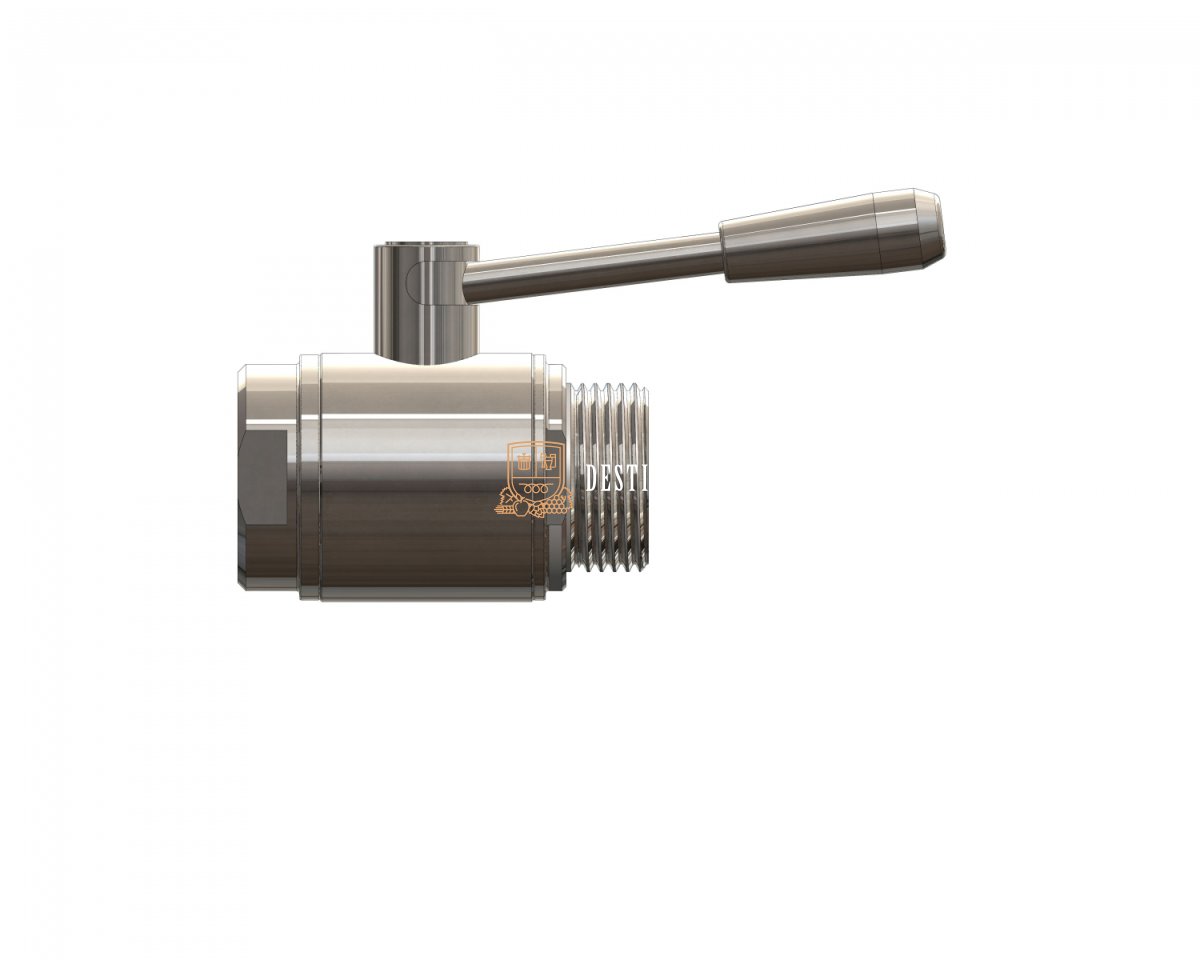

Ball valve – internal thread G – external thread WG
BESCHREIBUNG

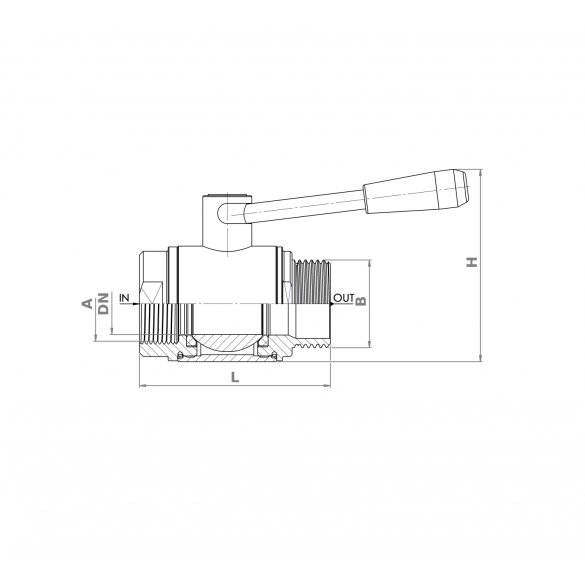

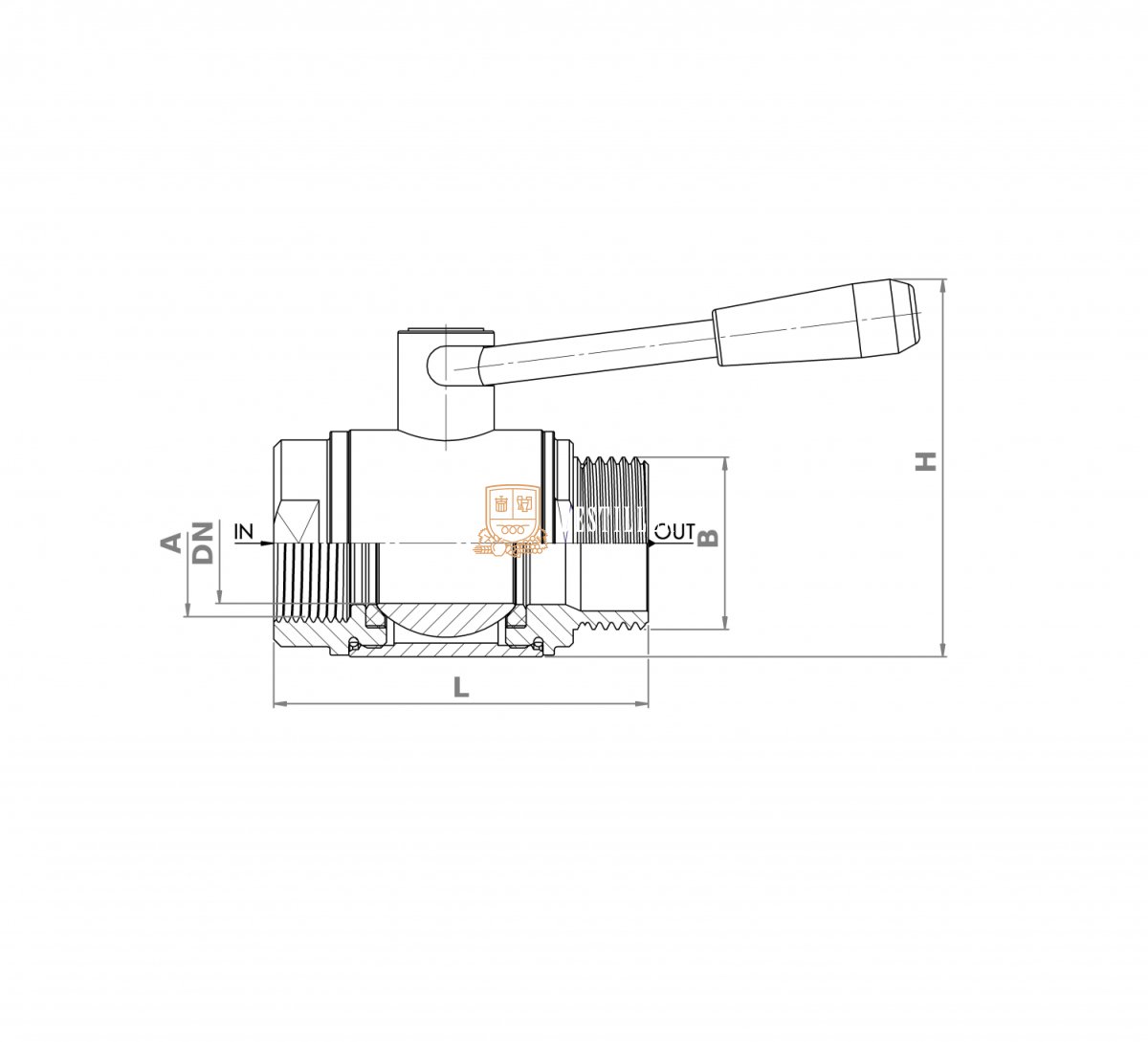

| DN | A | B | C | L | H | CODE |
|---|---|---|---|---|---|---|
| 25 | G 1" | WG 1" | ∅25 | 81 | 86 | 8114444 |
| 25 | G 1" | WG 5/4" | ∅25 | 81 | 86 | 8114454 |
| 32 | G 3/4" | WG 5/4" | ∅32 | 100 | 100 | 8113454 |
| 32 | G 5/4" | WG 5/4 | ∅32 | 100 | 100 | 8115454 |
| 40 | G 6/4" | WG 5/4" | ∅40 | 107 | 128 | 8116454 |
| 40 | G 6/4" | WG 6/4" | ∅40 | 107 | 128 | 8116464 |
