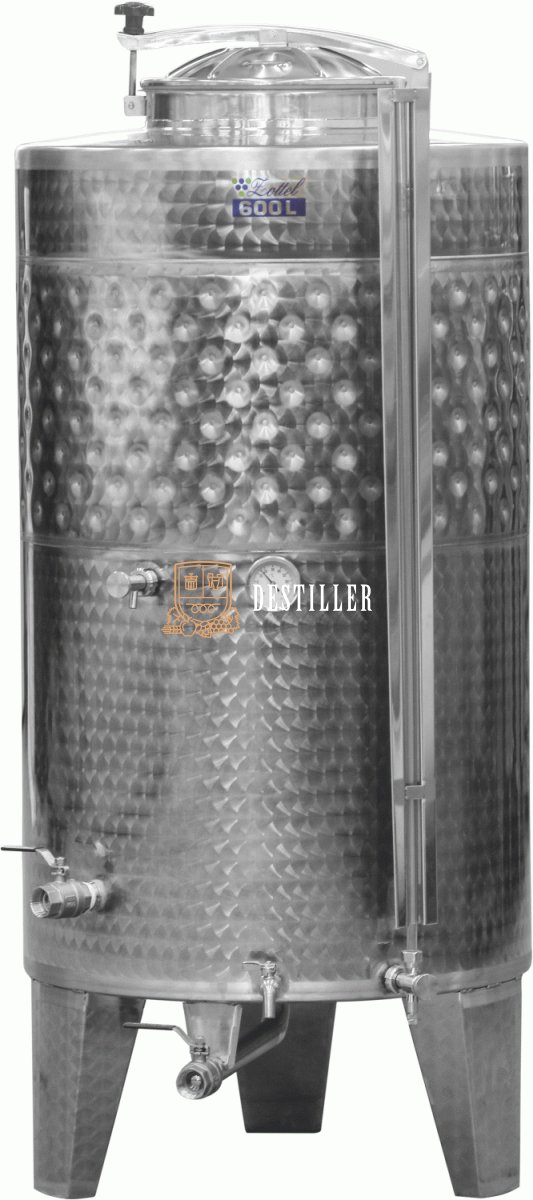

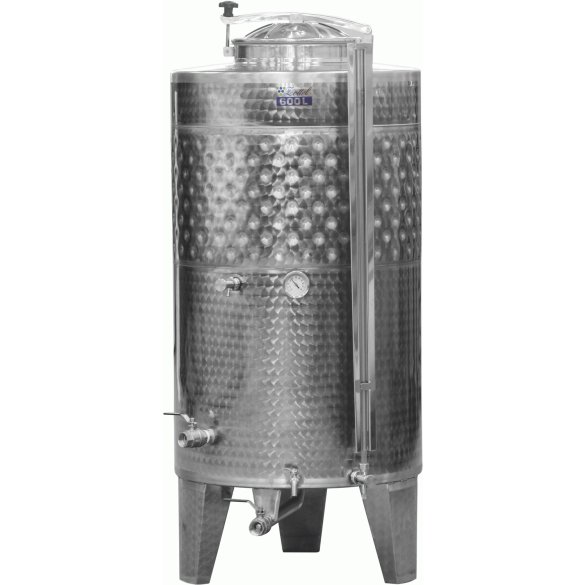

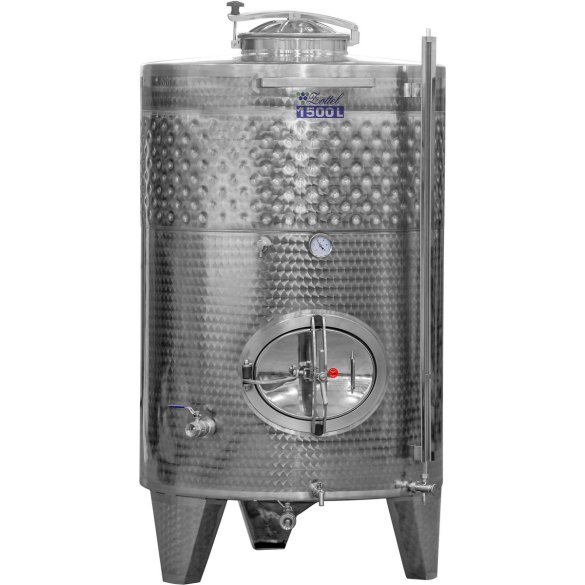

Storage or fermentation tank with cooling jacket
Storage or fermentation tank with cooling jacket.
Standard equipment
welded legs

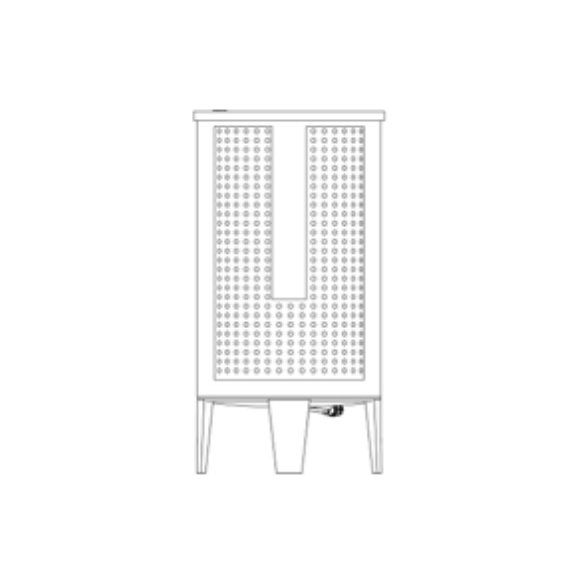

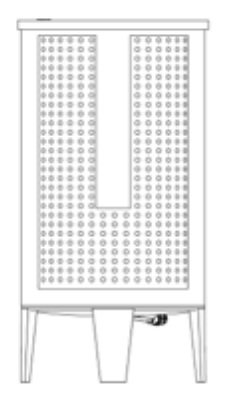

cooling jacket
2 × fitting ½” for
siehe vollständige Beschreibung
BESCHREIBUNG
Storage or fermentation tank with cooling jacket.
Standard equipment
- welded legs
- cooling jacket
- 2 × fitting ½” for cooling/heating medium
- total outlet - ball valve 1" (from 300 L to 800 L) or 5/4” (from 1100 L)
- partial outlet - ball valve 1" (from 300 L to 800 L) or 5/4” (from 1100 L)

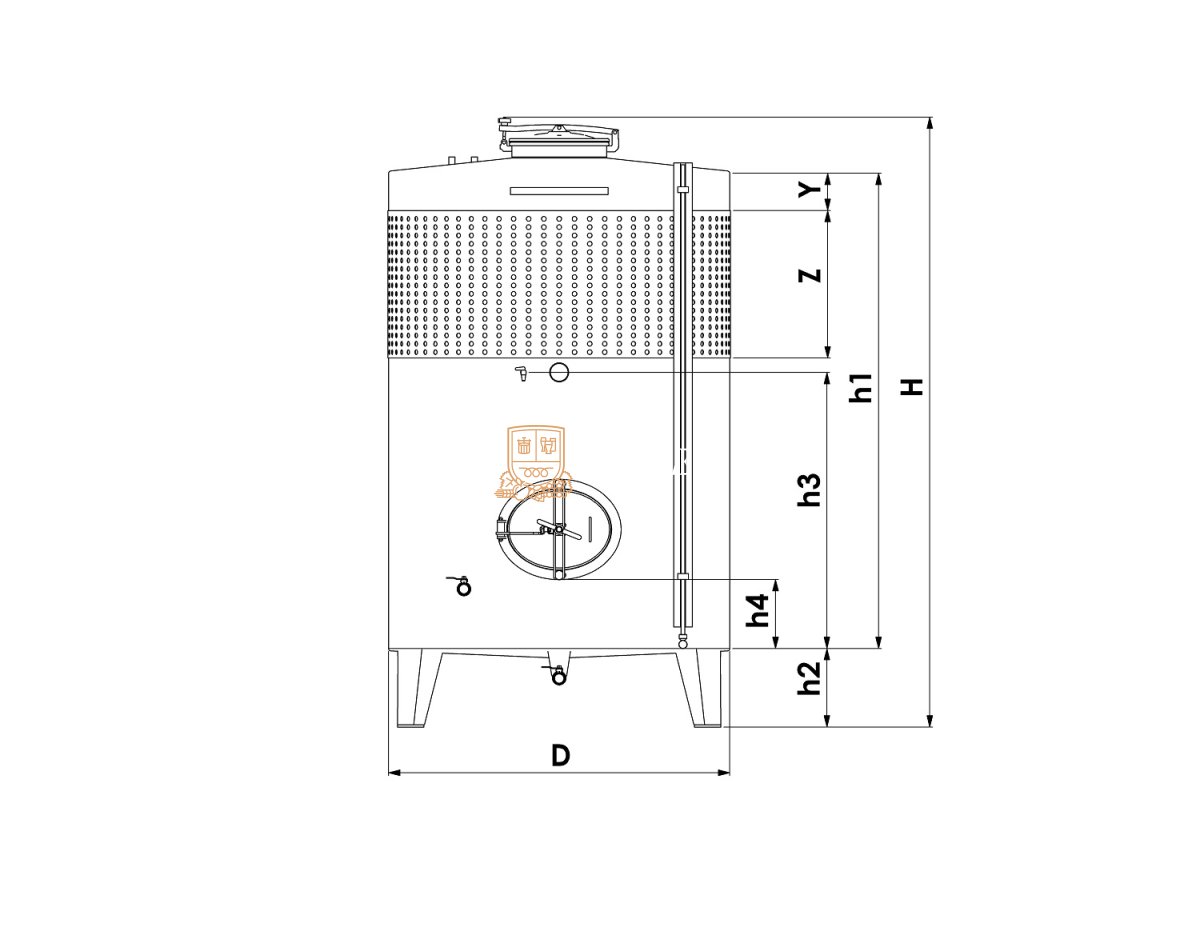

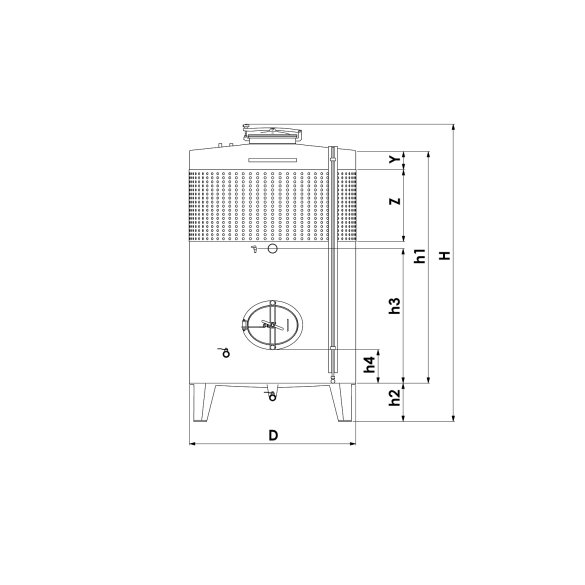

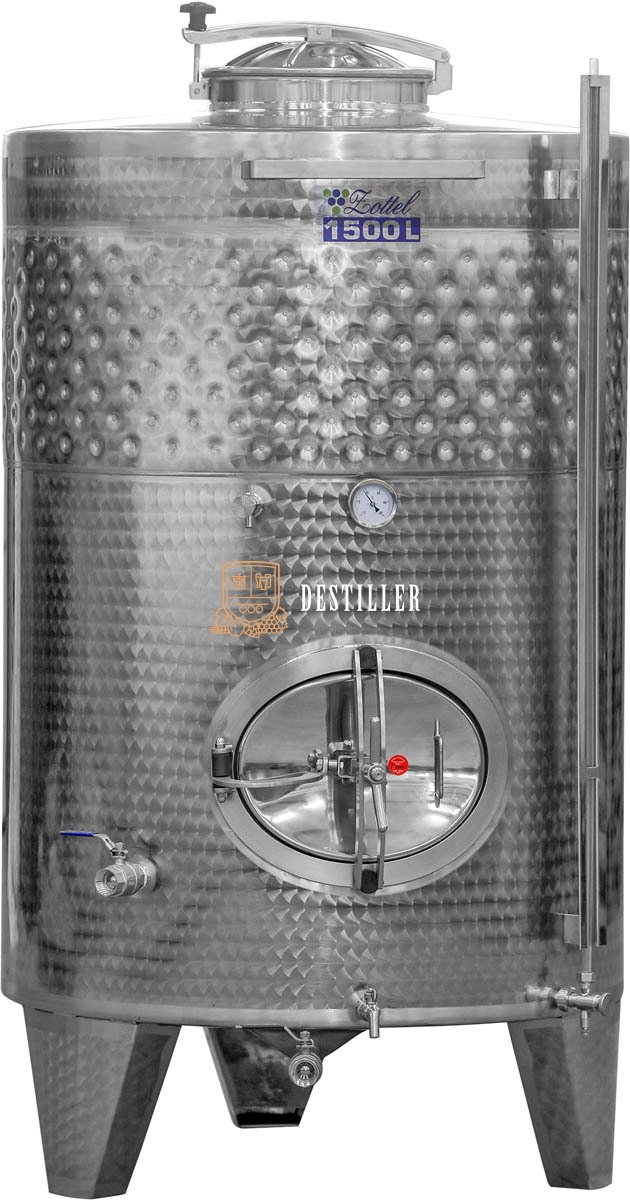

- oval manway door (from 1100 L)
- manhole cover Ø385 mm
- sample tap DN15
- analog thermometer, thermowell (behind)
- level indicator Ø16 mm
- 2 × inert gas fitting ½”
- ladder support (from 1100 L)
|

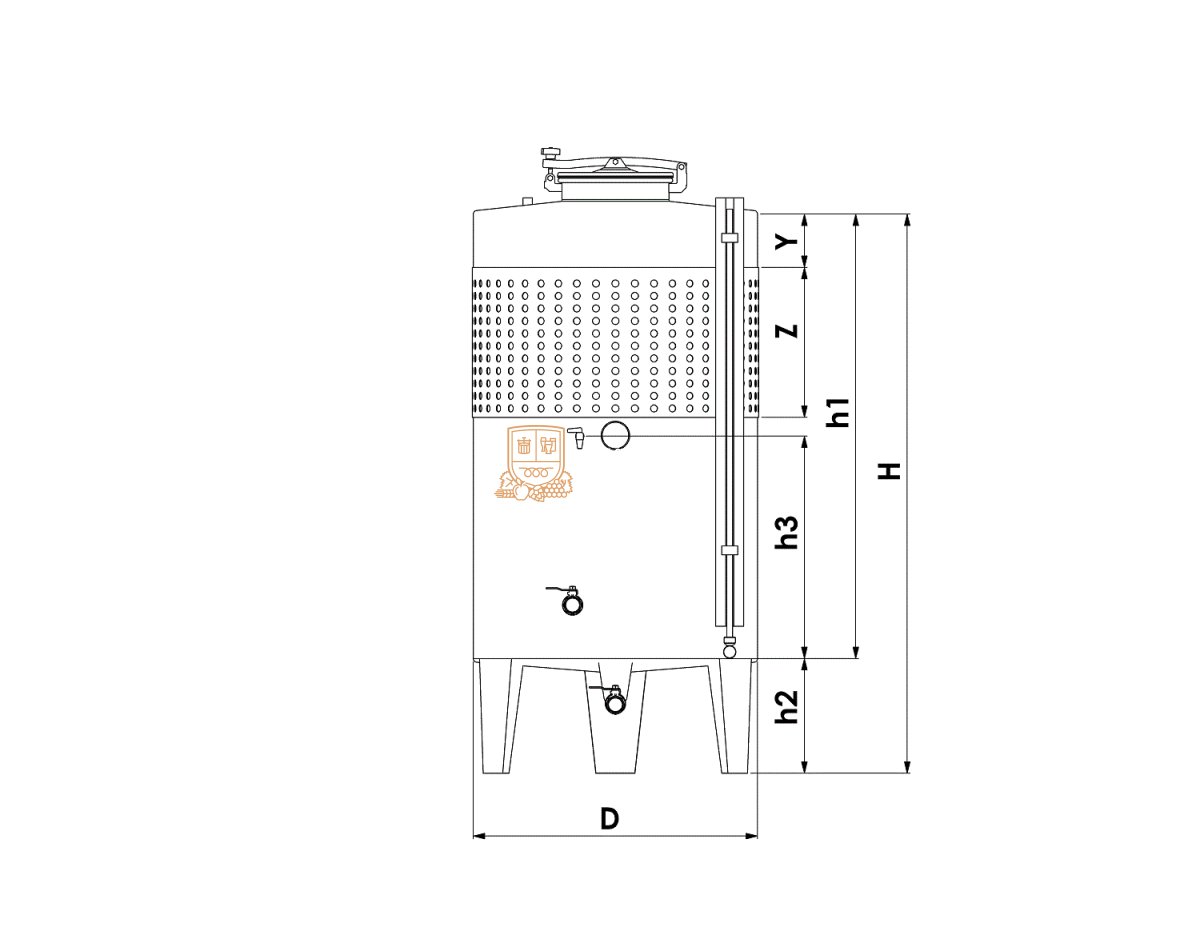

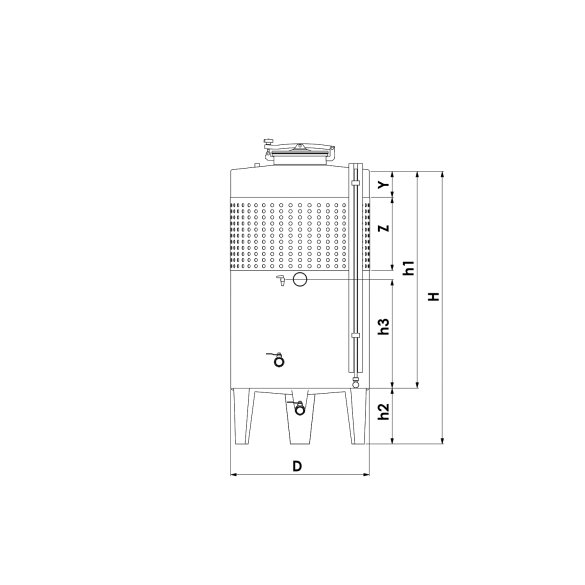

Volume in liters |
D in mm |
H in mm |
h1 in mm |
h2 in mm |
h3 in mm | Y in mm | Z in mm | CJ in m2 |
Code |
|
300 |
636 |
1470 |
1000 |
320 |
500 |
150 |
400 |
0,8 |
06Z300L4V |
|
500 |
794 |
1470 |
1000 |
320 |
500 |
150 |
400 |
0,9 |
06Z500L4V |
|
600 |
794 |
1720 |
1250 |
320 |
625 |
150 |
400 |
0,9 |
06Z600L4V |
|
800 |
794 |
1970 |
1500 |
320 |
750 |
150 |
400 |
0,9 |
06Z800L4V |
|
1100 |
953 |
1970 |
1500 |
320 |
750 |
150 |
400 |
1,1 |
06Z1100L4V |
|
1500 |
1115 |
2010 |
1500 |
360 |
750 |
150 |
400 |
1,4 |
06Z1500L4V |
|
2000 |
1275 |
2010 |
1500 |
360 |
750 |
150 |
400 |
1,5 |
06Z2000L4V |
|
2450 |
1430 |
2010 |
1500 |
360 |
750 |
150 |
400 |
2,1 |
06Z2450L4V |
|
2600 |
1275 |
2510 |
2000 |
360 |
1000 |
150 |
400 |
1,9 |
06Z2600L4V |
|
3300 |
1430 |
2510 |
2000 |
360 |
1000 |
150 |
400 |
2,1 |
06Z3300L4V |
