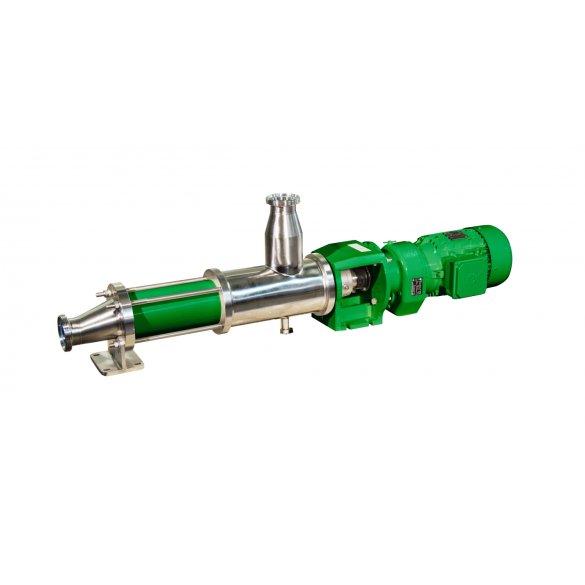

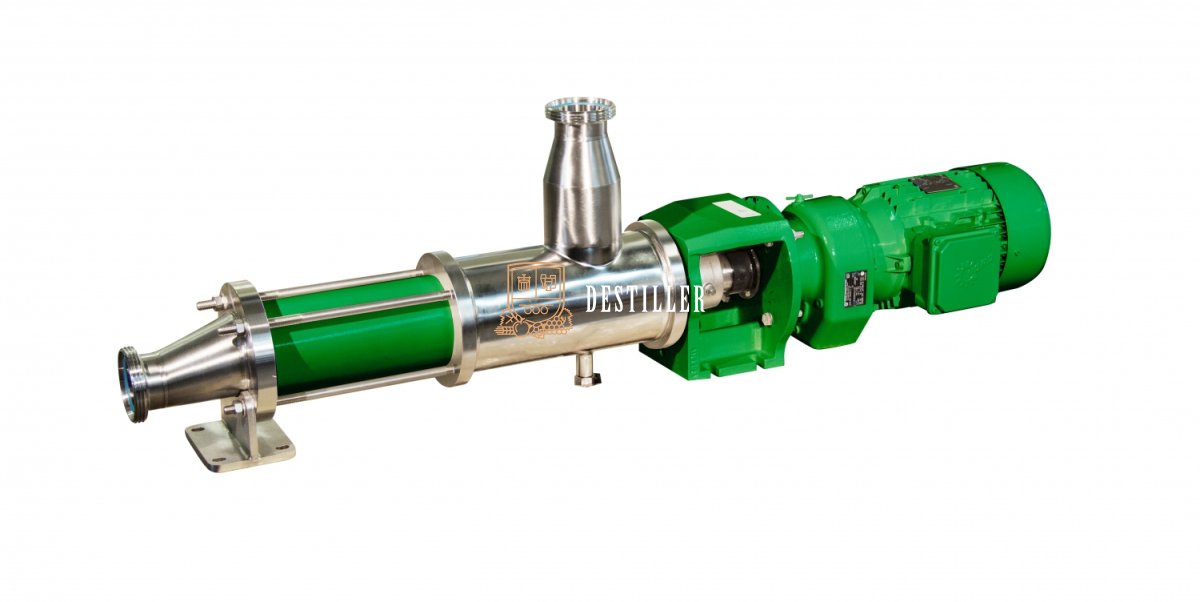

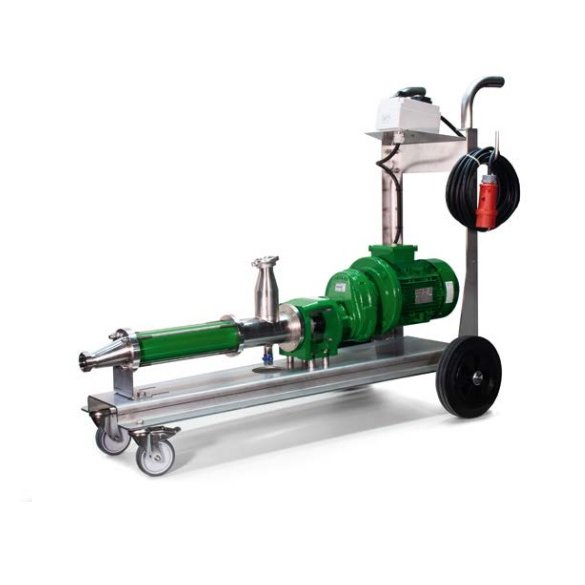

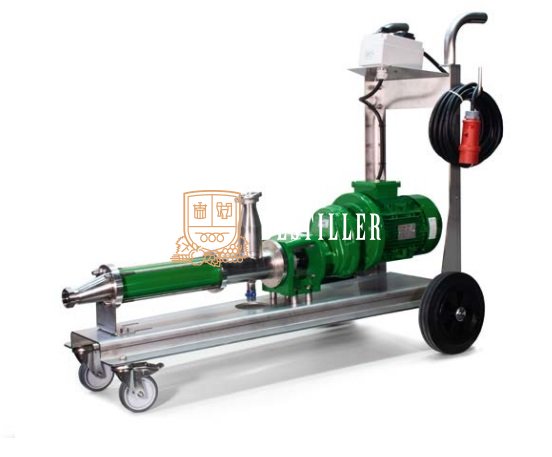

Zweistufige Exzenterschneckenpumpe
Top quality two-speed screw pump. Perfect for transporting delicate media. Eccentric screw pump type G. Driven by spur gear. Eccentric screw pump
siehe vollständige Beschreibung
BESCHREIBUNG
Top quality two-speed screw pump. Perfect for transporting delicate media. Eccentric screw pump type G. Driven by spur gear. Eccentric screw pump driven by a three-phase motor with pole change and 2 speeds.
Pump application range: wherever delicate transport of thick liquids is required.
Pump's models:
|
Models |
Size |
Speed (rpm) |
Capacity Q (l / h) |
|
AT 150 G |
5 - 6L |
460/920 |
7500/15000 |
|
AT 200G |
10 - 6L |
362/734 |
11000/22000 |
|
AT 300G |
17 - 6L |
250/500 |
14000/28000 |
|
AT 370 G |
17 - 6L |
332/660 |
18000/37000 |
|
AT 500/400 G |
35 - 6L |
200/400 |
20000/40000 |
|
AT 500 G |
35 - 6L |
250/500 |
25000/50000 |
